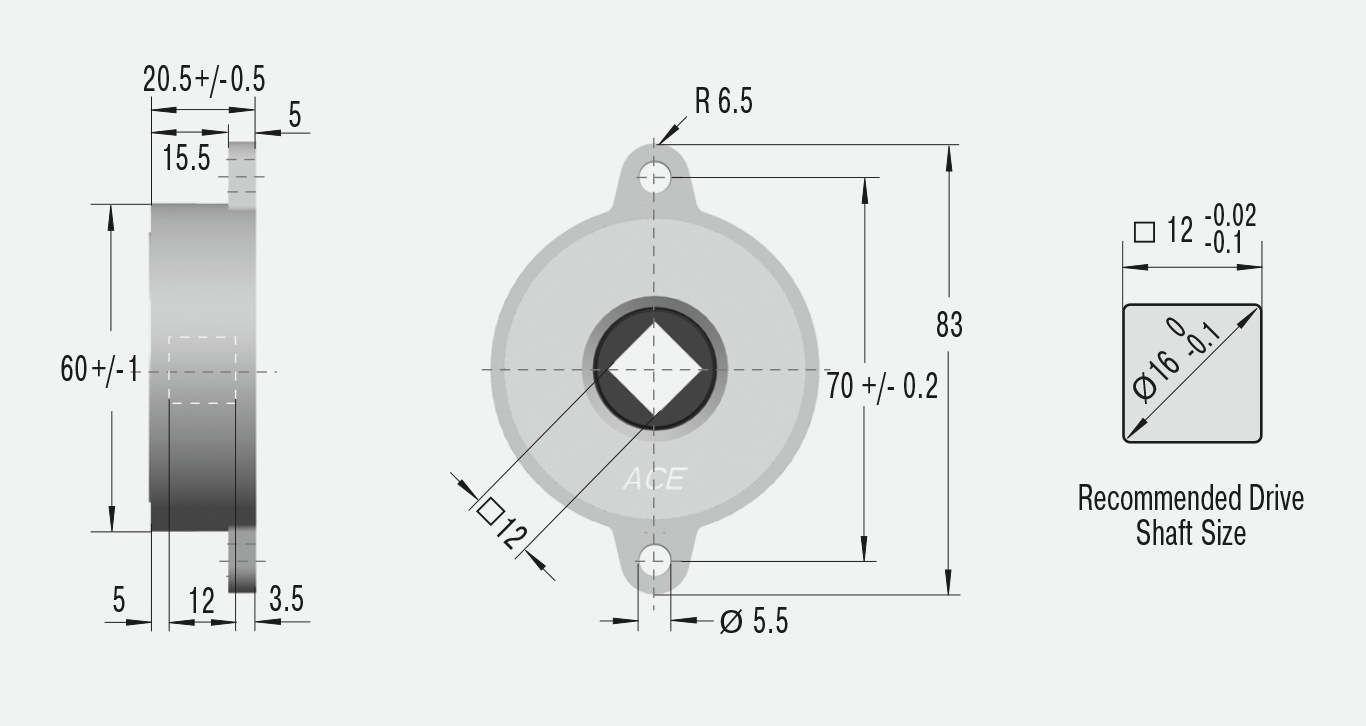

Damping torque 5 - 10 Nm Damping direction right Return Damping Torque 1.5 Nm Construction size Ø 60 mm Lifetime 50,000 cycles, even after this time, the dampers still produce over approx. 80 % of their original damping moment. The service life may be significantly higher or lower, depending on the application. Operating temperature range -5 °C to +50 °C Material Outer body: zinc die-cast; Output shaft sleeve: plastic Mounting in any position Rotation angle max. 130° | NoteDamping direction: Right hand damping = damping action in clockwise direction (when looking onto the output shaft or output shaft sleeve, depending on the damper type). A play of approx. 5° can occur at the beginning of movement. Mounting informationNo axial or radial forces may be induced via the shaft. Safety informationDo not use rotary dampers as supports. Provide an external guide or support. On requestSpecial accessories available on request. |
