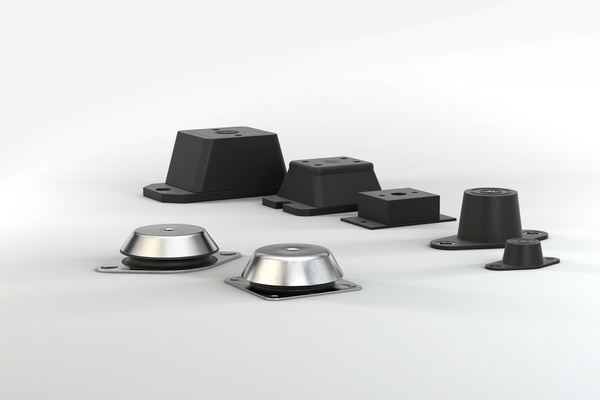

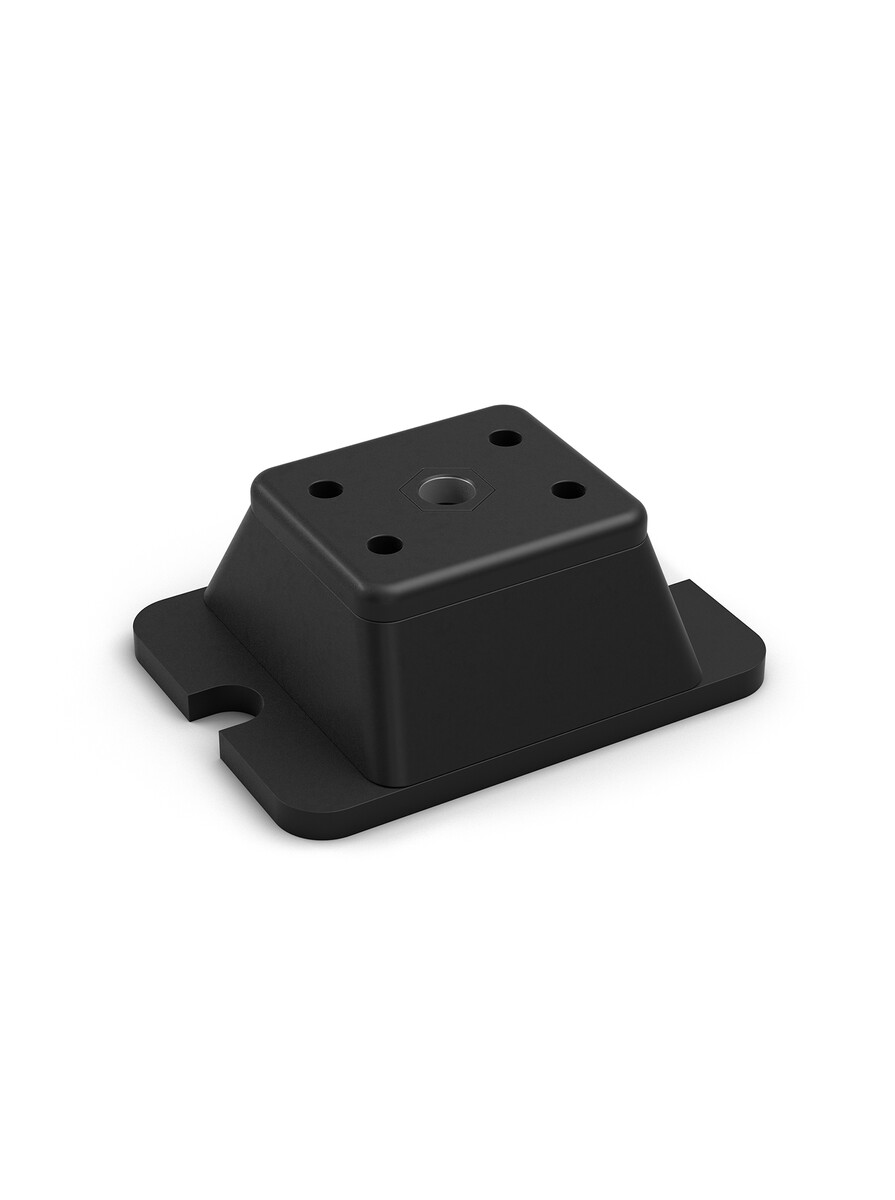

Compression Mounts

Ideal for preventing unbalanced masses from vibrating

Pre-tensioned High-Performance Bearing Surface
Natural frequency 4.5 Hz to 17.3 Hz
Load range 6.3 kg to 2,053.7 kg

Effective isolation of machines and plants: The Compression Mounts product family consists of robust heavy duty bearings, which are particularly good at preventing vibrations and structure-borne noise due to unbalanced masses. These prestressed machine elements are maintenance-free and improve efficiency in all low frequency application ranges above about 15 Hz. Using a linkage, the natural frequency of the system can be reduced to between 6 and 10 Hz. Interfering frequencies above 900 rpm (15 Hz) are effectively isolated. At 1,500 rpm (25 Hz) the level of isolation is 90 %.

Made from galvanised metal and neoprene or natural rubber, they can be used at temperatures between -30 °C and +80 °C.

The heavy duty mount is normally used in vertical load applications - above all for industrial machines, small motors, pumps and compressors.

Technical data

Natural frequency 4.5 Hz to 17.3 Hz

Load range 6.3 kg to 2,053.7 kg

Operating temperature range -40 °C to +80 °C

Environment Resistant against UV radiation

Material Outer body: zinc plated steel; Isolation medium: Neoprene (chloroprene rubber) or natural rubber

Application field compressors and ventilation systems, centrifuges, vibrators and crushing systems, blowers, off road, shipbuilding, military, injection moulding plants, control boxes

Note

Not fail-safe. Low-frequency application range from about 15 Hz.

Mounting information

Suitable for loads in pressure direction.

On request

Special options.

×
