Rotary Dampers
FDN

The flat disc brake for one direction of rotation

Continuous Rotation
Damping torque 2 Nm to 11 Nm

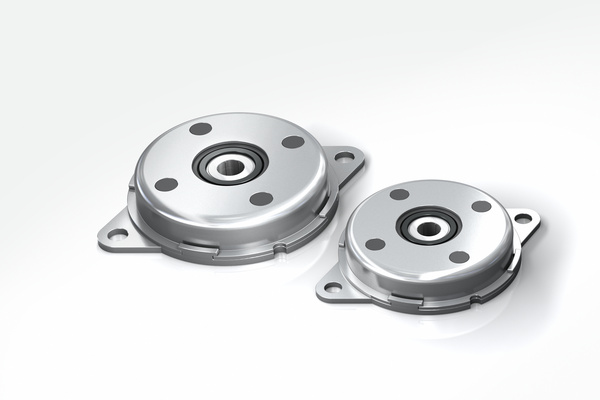

The damping direction of the flat, strong FDN rotary dampers with steel body can be either right or left rotation. They can brake directly in the pivot point. ACE rotary dampers are maintenance-free and ready-to-install.

Technical data

Damping torque 2 Nm to 11 Nm

Damping direction right or left

Construction size Ø 47 mm to 70 mm

Rotational speed max. 50 rpm

Lifetime 50,000 cycles (1 cycle = 360° left-hand, 360° right-hand). Even after this time, the dampers still produce over approx. 80 % of their original damping moment. The service life may be significantly higher or lower, depending on the application.

Operating temperature range -10 °C to +60 °C

Material Outer body: steel; Output shaft sleeve: nylon with metal freewheel

Mounting in any position

Information to the shaft FDN-47: Ø 6 +0 / -0.03
FDN-57 to FDN-70: Ø 10 +0 / -0.03
Hardness > HRC55, surface smoothness RZ < 1µm

Mounting information

Turn the shaft in the opposite direction to the brake direction to avoid damaging the freewheel mount. No axial or radial forces may be induced via the shaft.

Safety information

Do not use rotary dampers as supports. Provide an external guide or support.

On request

Special accessories available on request.

Application Examples

Rotary Dampers - FDN
For ergonomic handling, modern cooker hoods can be driven by a motor into an up position and then down again. When driven downwards, an AC load can result in a total loss through current being fed back into the voltage source. One of the tasks of...

Application Areas

  • linear slides
  • pneumatic cylinders
  • handling modules
  • machines and plants
  • swivel units
  • electro-mechanical drives
  • hydraulic devices
  • conveyor systems
  • crane systems
These compact, cost-effective machine elements are ideal as end position dampers in linear axes, in toolmaking and tool machines, in hydraulic and pneumatic equipment, handling equipment and other applications.
×
