Safety Products

VS-BALR

TYPES	Energy capacity Nm/cycle	Stroke mm	Dynamic force min. N	Dynamic force max. N
VS-BALR-100-FC	100,000	400	190,000	310,000
VS-BALR-150-FC	150,000	500	200,000	390,000
VS-BALR-250-FC	250,000	650	270,000	490,000
VS-BALR-400-FC	400,000	850	340,000	600,000

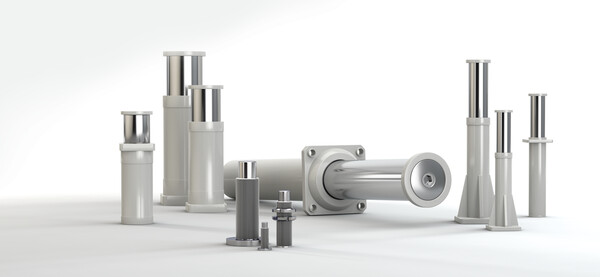

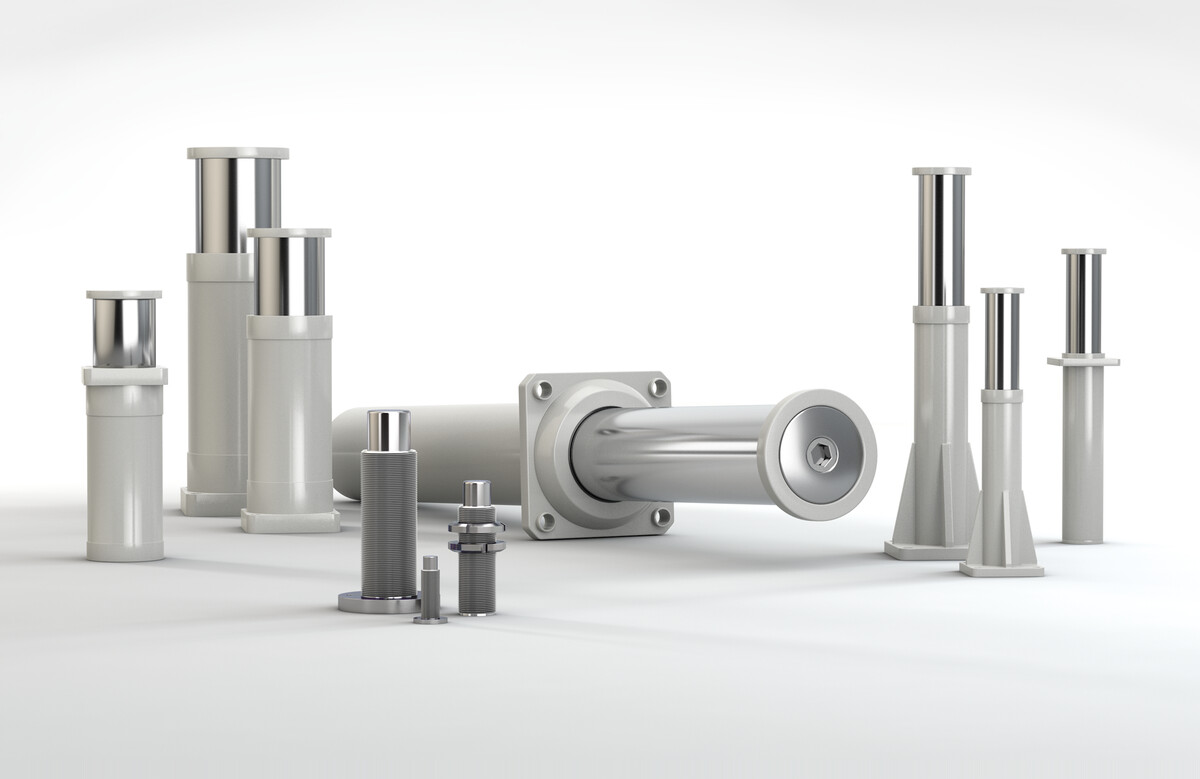

Viscoelastic Shock Absorbers
VS-BALR

Simple Design – High reliability

The self-adjusting Viscoelastic Shock Absorbers are designed on the principals of hydrostatic compression to combine the funtions of a shock absorber and a spring. The advantages are a high damping coefficient, a low sensitivity to temperature changes and increased security by integrated static preload.

Viscoelastic shock absorbers are being used across a wide range of applications within heavy industry. Examples include, Material Handling, Rolling Mills, Defense, Waterways and Paper production.

Technical Data

Energy capacity per stroke 100,000 to 400,000 Nm/cycle

Stroke 400 to 850 mm

Dynamic force 190,000 to 600,000 N

Static force range 230,000 to 425,000 N

Impact velocity range 0.5 to 5 m/s

Operating temperature range -20 to 50 °C

Mounting in any position

Positive stop Integrated

Damping medium Visco elastic fluid

Material

Outer body steel painted grey

Piston rod zinc plated steel

Rod Button steel painted grey

Technical Notes

Note

The shock absorber can be pushed through its stroke. In creep speed conditions the shock absorber provides minimal resistance and there is no braking effect.

On request

Special designs

Application Areas

waterways

Viscoelastic shock absorbers are being used across a wide range of applications within heavy industry. Examples include, Material Handling, Rolling Mills, Defense, Waterways and Paper production.
