Steering stabilisation for cargo bikes and E-Trikes
Hydraulic DampersHB-12 to HB-70

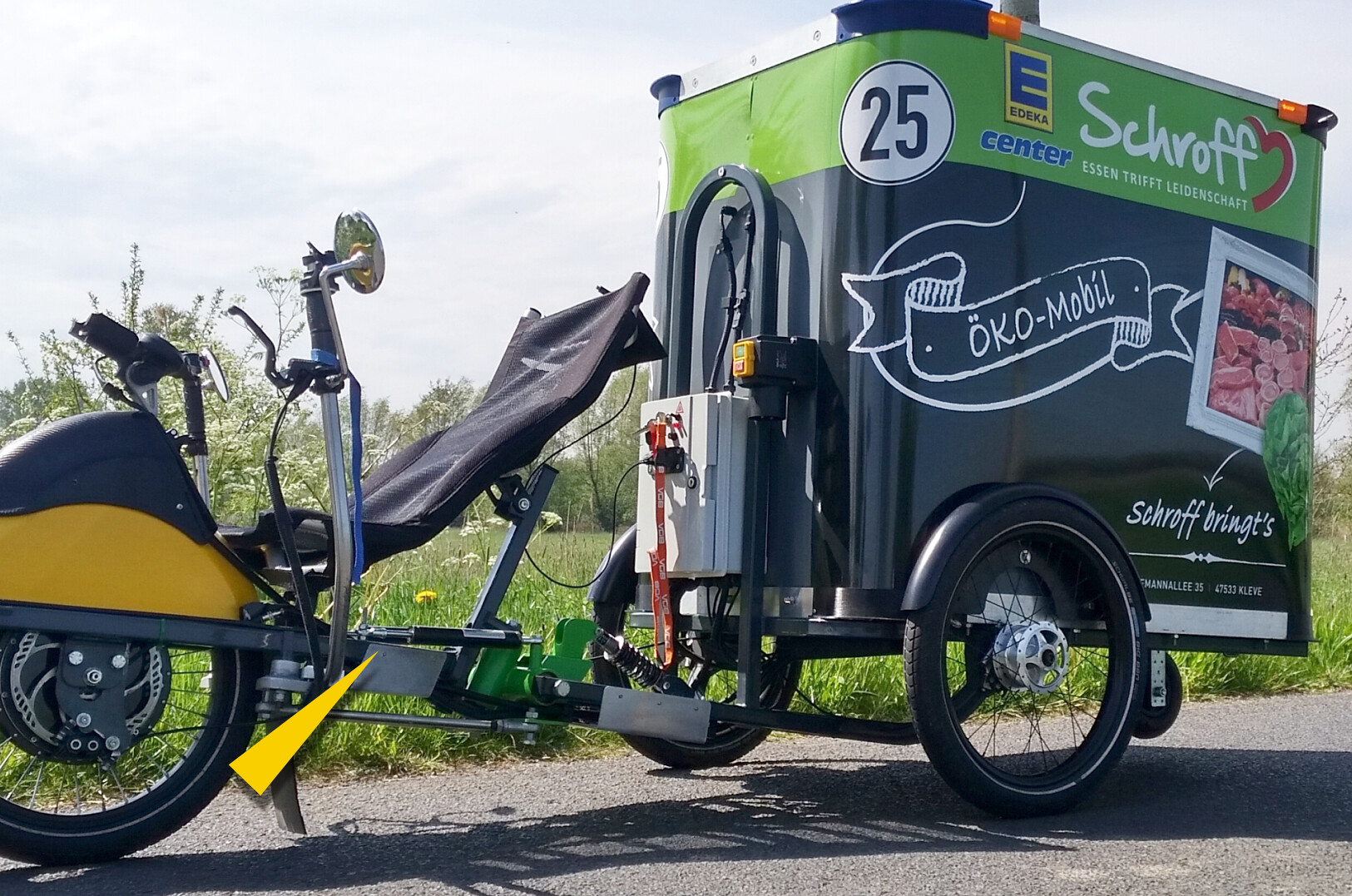

For more comfort and safe steering, this e-trike is equipped with hydraulic dampers from ACE Stoßdämpfer GmbH Copyright: RM Customs GbR, 47533 Kleve, Germany
Hydraulic Dampers HB-12 to HB-70
For more comfort and safe steering, this e-trike is equipped with hydraulic dampers from ACE Stoßdämpfer GmbH Copyright: RM Customs GbR, 47533 Kleve, Germany
vehicle technology, vehicles and transport industry, absorption control
Safe steering system with increased comfort for electrically powered cargo bikes
The delivery of goods has become very popular with supermarkets. This has increased the demand for bicycles to avoid congestion and contribute to environmental protection. For this type of transport and fast deliveries, a customized small series of cargo bikes in underfloor construction was designed and equipped with electric drive and hydraulic dampers. The dampers supplied by ACE are variably adjustable in compression or traction force from 30 N up to 3,000 N. They soothe the chassis of the E-Trikes, serve for safety and increase driving comfort.
