Automation Control
MC150-V4A to MC600-V4A
Product Series
  • Miniature Shock Absorbers
  • Industrial Shock Absorbers
  • Heavy Industrial Shock Absorbers
  • Profile Dampers
  • Damping Pads
Product families
  • MC5 to MC75
  • MC150 to MC600
  • MC150-V4A to MC600-V4A
  • PMCN150 to PMCN600
  • PMCN150-V4A to PMCN600-V4A
  • SC190 to SC925
  • SC²25 to SC²190
  • SC²300 to SC²650
  • MA30 to MA900
Basic Types
  • MC150EUM-V4A
  • MC225EUM-V4A
  • MC600EUM-V4A

Miniature Shock Absorbers

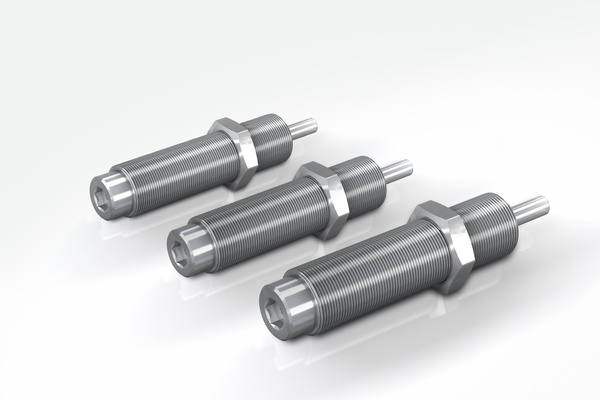

MC150-V4A to MC600-V4A

Exceptionally high endurance with stainless steel corrosion protection

Self-Compensating, Stainless Steel, Rolling Diaphragm Technology
Energy capacity 20 Nm/Cycle to 136 Nm/Cycle
Stroke 12 mm to 25 mm

Brilliant in every respect: These high performance miniature shock absorbers in stainless steel are based on the MC150 to MC600 product family and its proven damping technology. This means that these special absorbers offer all of the benefits of the MC standard units such as the proven ACE rolling diaphragm technology for maximum service life and direct installation in a pressure chamber with up to approx. 7 bar.

Thanks to perfectly progressive maximum energy absorption and effective weight potential, their use is augmented even further by the outer body and a complete range of accessories made of stainless steel (material 1.4404).

Miniature shock absorbers made of stainless steel are mainly used in medical and electro-technology, but also in shipbuilding, packaging and chemicals industry and in the food processing. For the latter, they are filled with a special oil in order to fulfil the authorisation conditions (NSF-H1) for this market.
Configurator Configure your individual shock absorber with the right accessories Calculation Tool Calculate the right shock absorber for your application
Miniature Shock Absorbers
MC150-V4A to MC600-V4A
Exceptionally high endurance with stainless steel corrosion protection
Self-Compensating, Stainless Steel, Rolling Diaphragm Technology
Energy capacity 20 Nm/Cycle to 136 Nm/Cycle
Stroke 12 mm to 25 mm
ACE Controls Inc. - Image - MC150-V4A to MC600-V4A
ACE Controls International Inc. is not responsible for content on external linked websites.
ACE Controls Inc. - Image - MC150-V4A to MC600-V4A

Technical data

Energy capacity 20 Nm/Cycle to 136 Nm/Cycle

Stroke 12 mm to 25 mm

Impact velocity range 0.06 m/s to 6 m/s. Other speeds on request.

Operating temperature range 0 °C to 66 °C

Mounting in any position

Positive stop Integrated

Material Outer body, Locknut, Accessories: stainless steel (1.4404, AISI 316L); Main bearing: plastic; Piston rod: hardened stainless steel (1.4125, AISI 440C); Rolling diaphragm: EPDM

Damping medium oil, temperature stable

Application field clean room areas, pharmaceutical industry, medical technology, food industry, linear slides, pneumatic cylinders, handling modules, machines and plants, finishing and processing centres, measuring tables

Note

If precise end position datum is required consider use of the stop collar type AH.

Safety information

External materials in the surrounding area can attack the rolling seal and lead to a shorter service life. Please contact ACE for appropriate solution suggestions. Suitable for use in pressure chambers up to 7 bar.

On request

Special oil with food approval. Special threads or other special options available on request.

  • clean room areas
  • pharmaceutical industry
  • medical technology
  • food industry
  • linear slides
  • pneumatic cylinders
  • handling modules
  • machines and plants
  • finishing and processing centres
  • measuring tables
