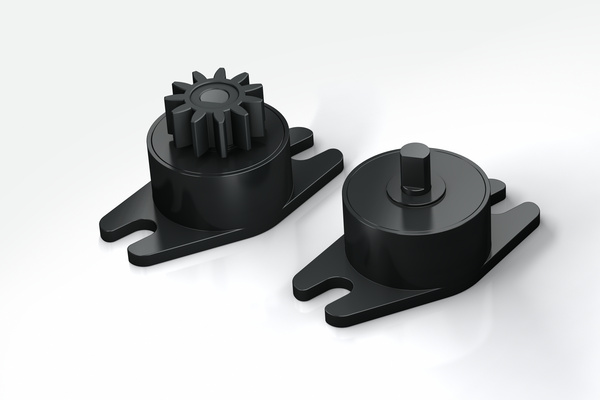

Damping torque 2 Ncm to 3 Ncm Damping direction bidirectional, right or left Construction size Ø 15 mm Rotational speed max. 50 rpm Lifetime 50,000 cycles (1 cycle = 360° left-hand, 360° right-hand). Even after this time, the dampers still produce over approx. 80 % of their original damping moment. The service life may be significantly higher or lower, depending on the application. Operating temperature range 0 °C to 50 °C Pressure angle 20° Material Outer body, Gear: plastic; Shaft: plastic, steel Mounting in any position Tooth Involute gearing P.C.D. 8.8 mm No. of teeth 11 Module 0.8 | Mounting informationNo axial or radial forces may be induced via the shaft. Safety informationDo not use rotary dampers as supports. Provide an external guide or support. On requestSpecial designs available on request. Toothed plastic racks (modules 0.5 to 1.0) are available for the rotary dampers with pinions. |
