Safety clamping systems for rail constructions on lathes

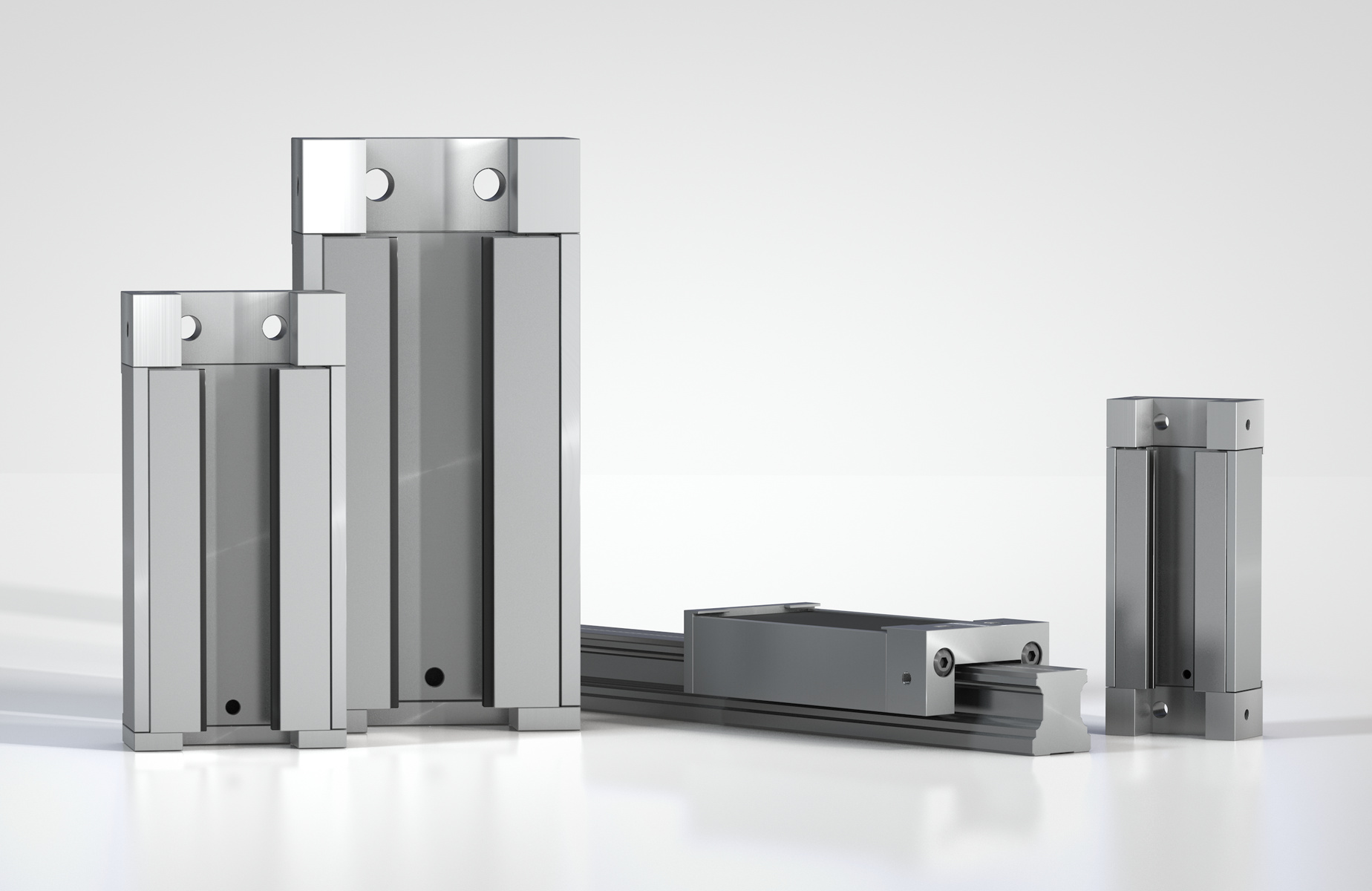

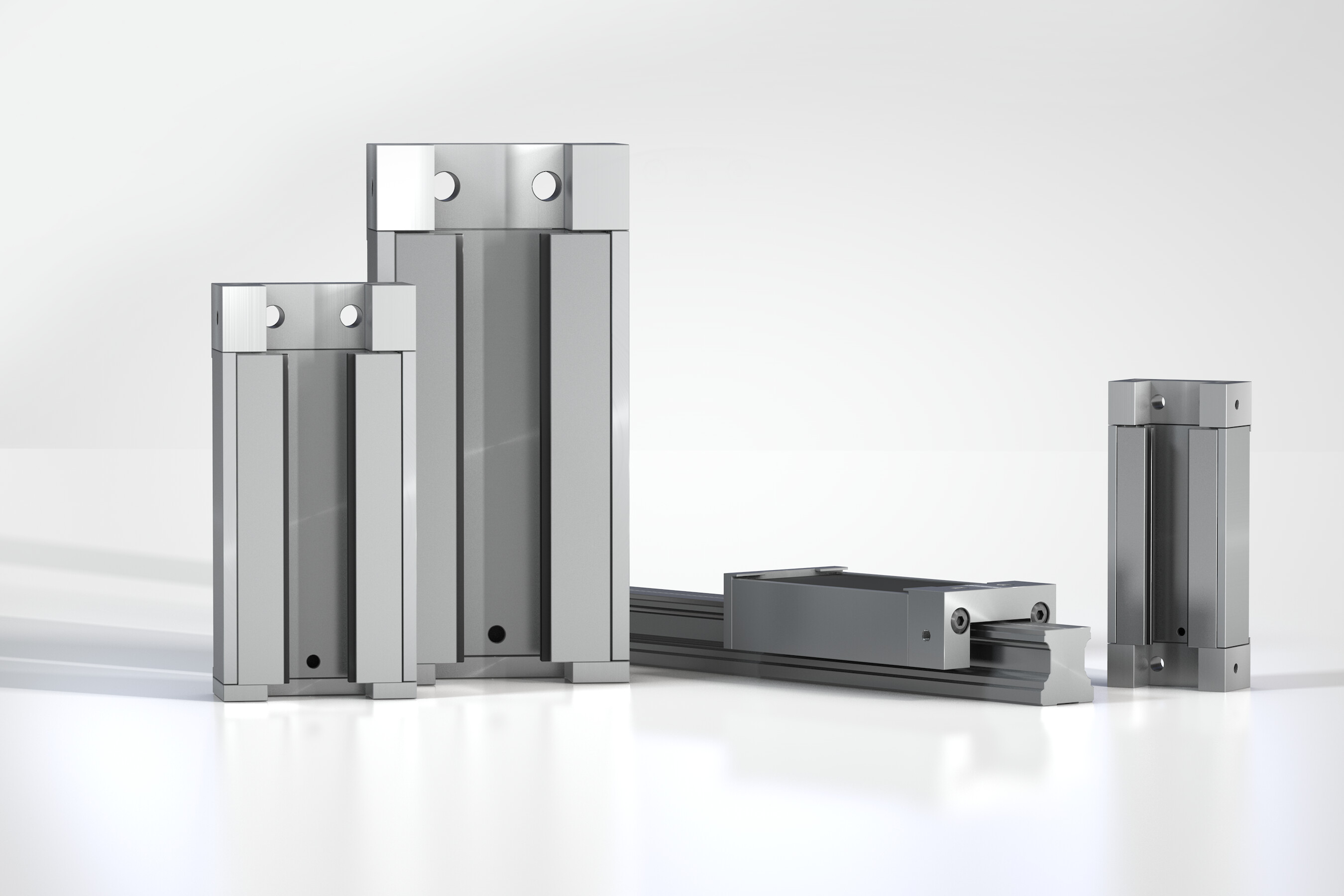

Clamping Elements LOCKED SL

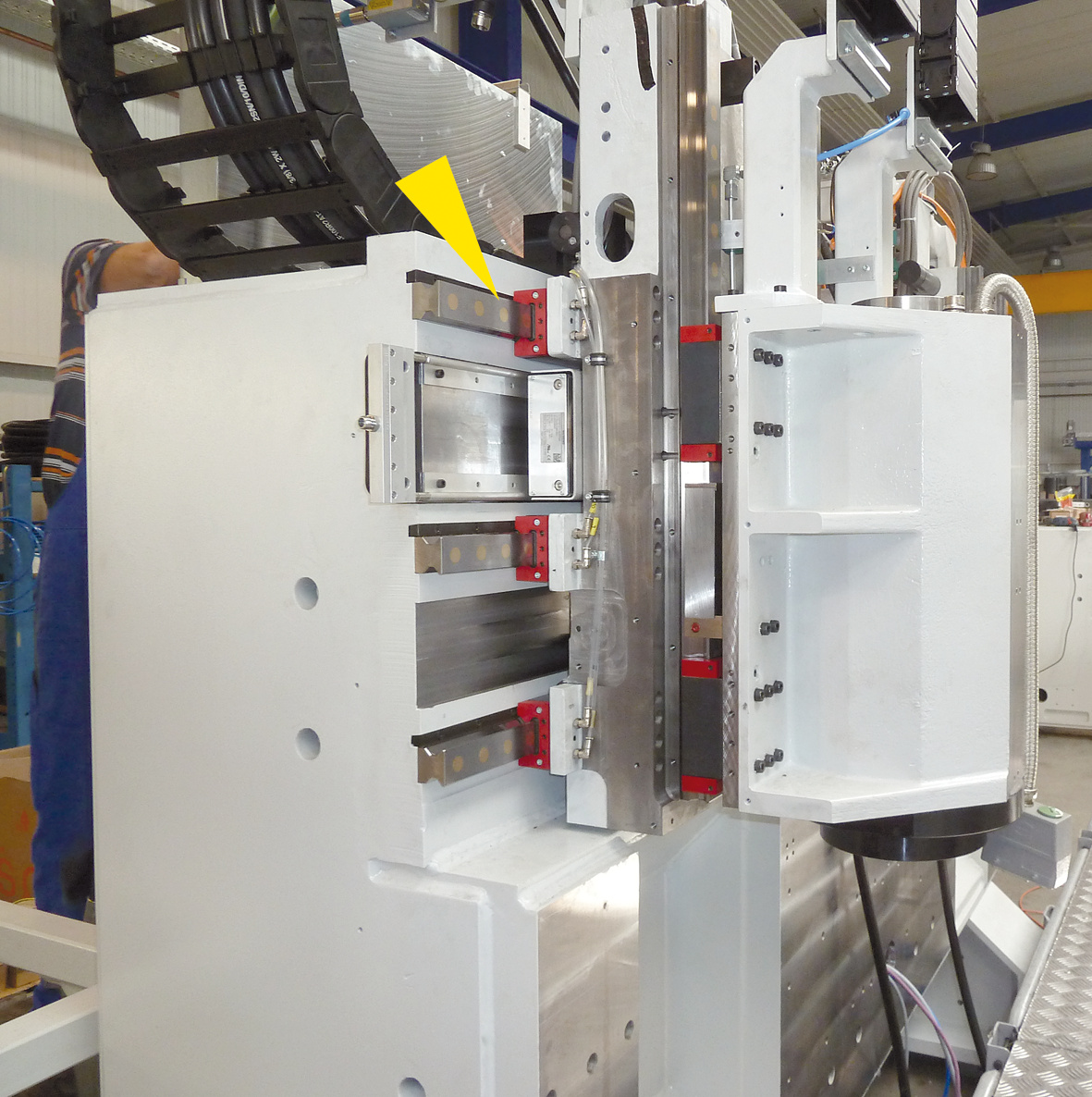

ACE clamping and safety elements maintain a rock-solid hold on the axes in special lathes and secure the predetermined positions both horizontally and vertically Copyright: RASOMA Werkzeugmaschinen GmbH, 04720 Döbeln, Germany
Mech. Engineering & Automation
tool machines, transport systems, feeder installations, positioning tables, assembly stations

ACE Clamping and safety elements hold axes in special lathes rock-solid and secure previously determined positions horizontally and vertically

In order to secure the processing position of a special lathe in both the horizontal and the vertical axis, LOCKED SL clamping elements from ACE are installed. They have the further advantage of preventing slippage through the vertical axis in the case of a malfunction. The products used in the SL family not only have the correct track width and offer very high process clamping forces of up to 10,000 N, but can also apply the same force as an emergency-stop braking function. This is due to the specially integrated brake linings made of low-wear sintered metal.
