Secure material accumulator

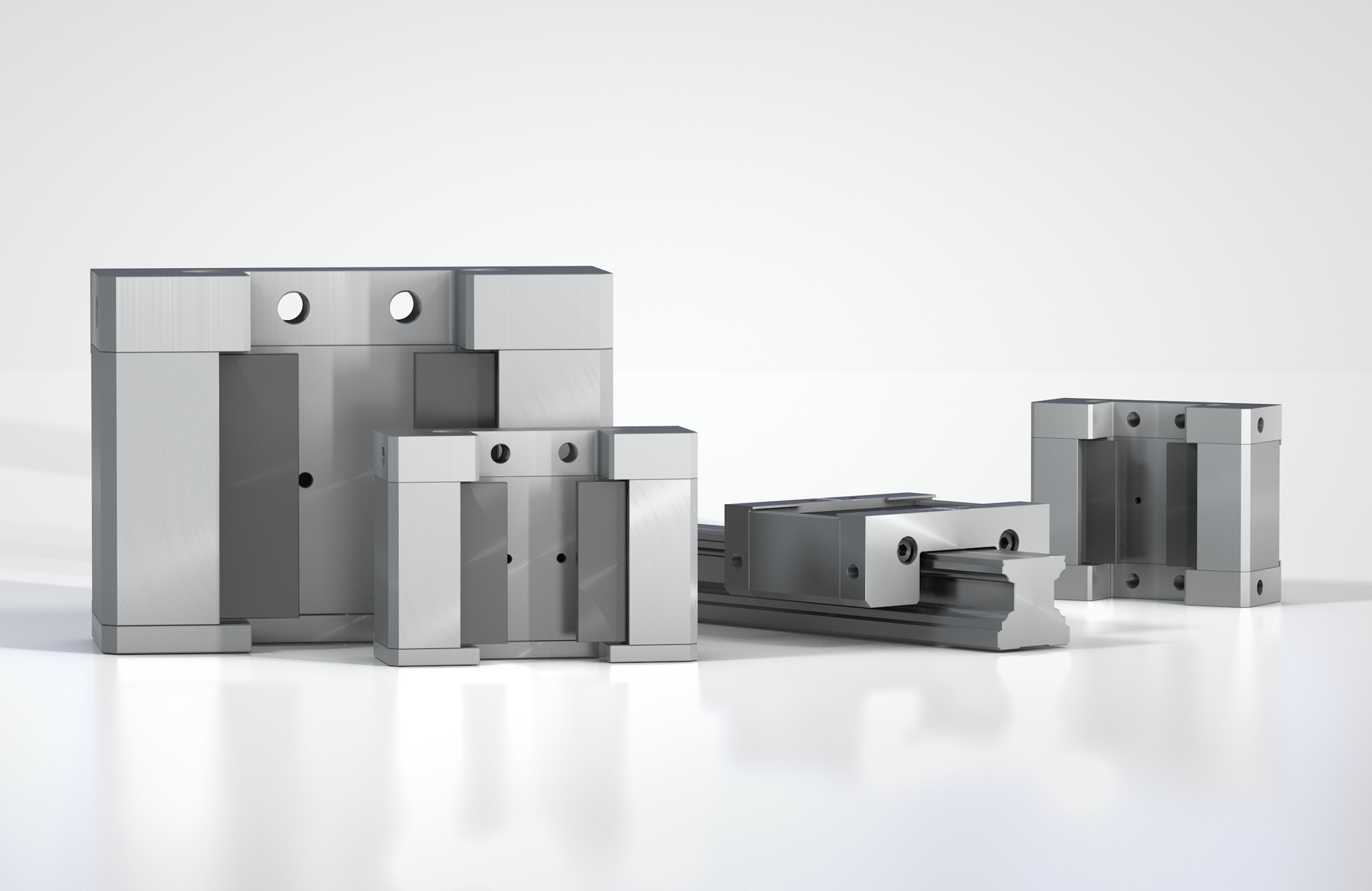

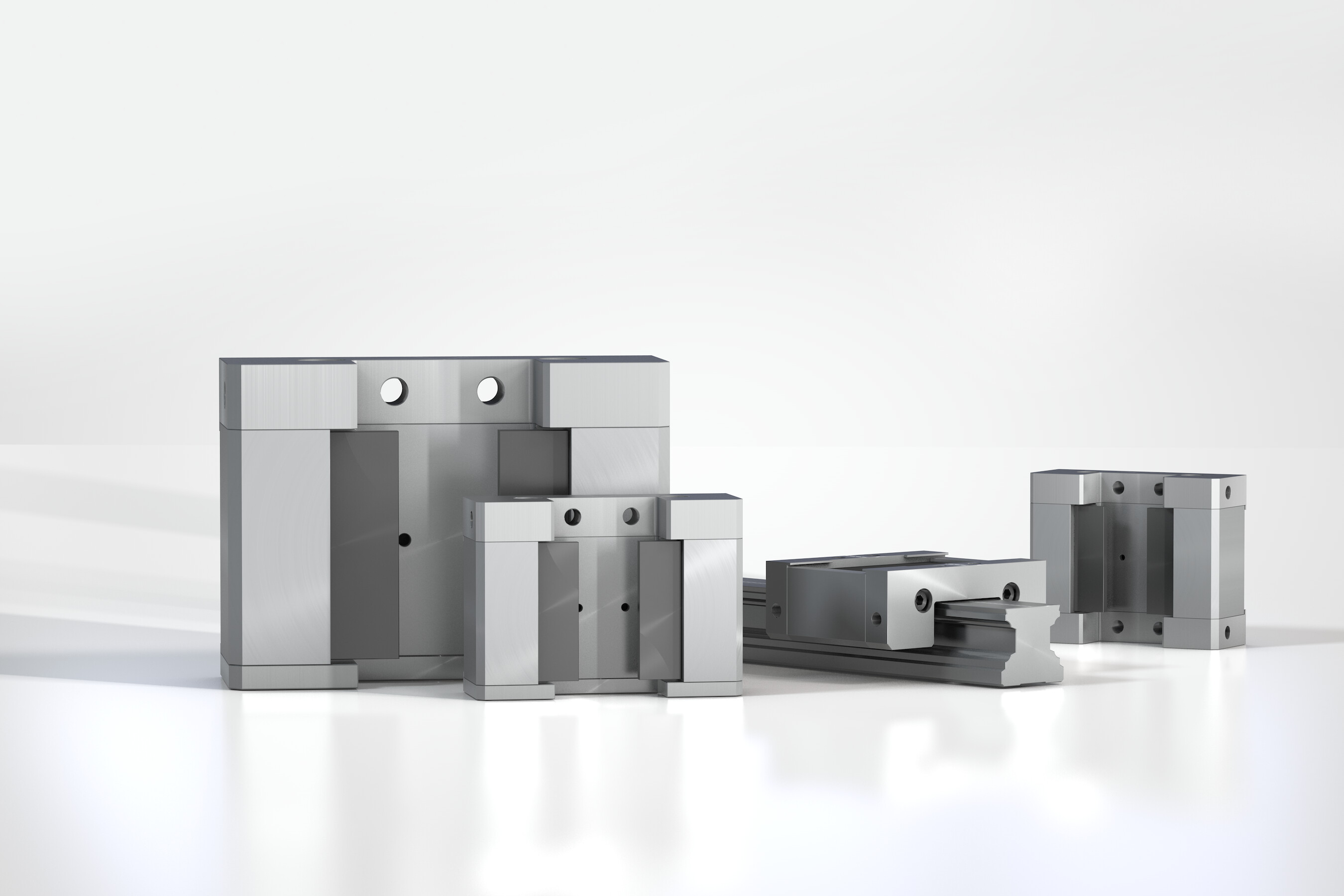

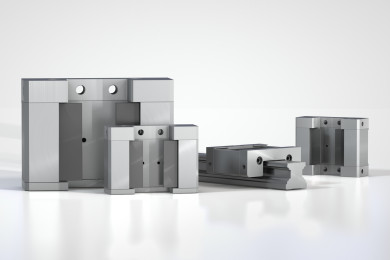

Clamping Elements LOCKED SLK
Secure material accumulator
Mech. Engineering & Automation
machines and plants, tool machines, transport systems, feeder installations, assembly stations

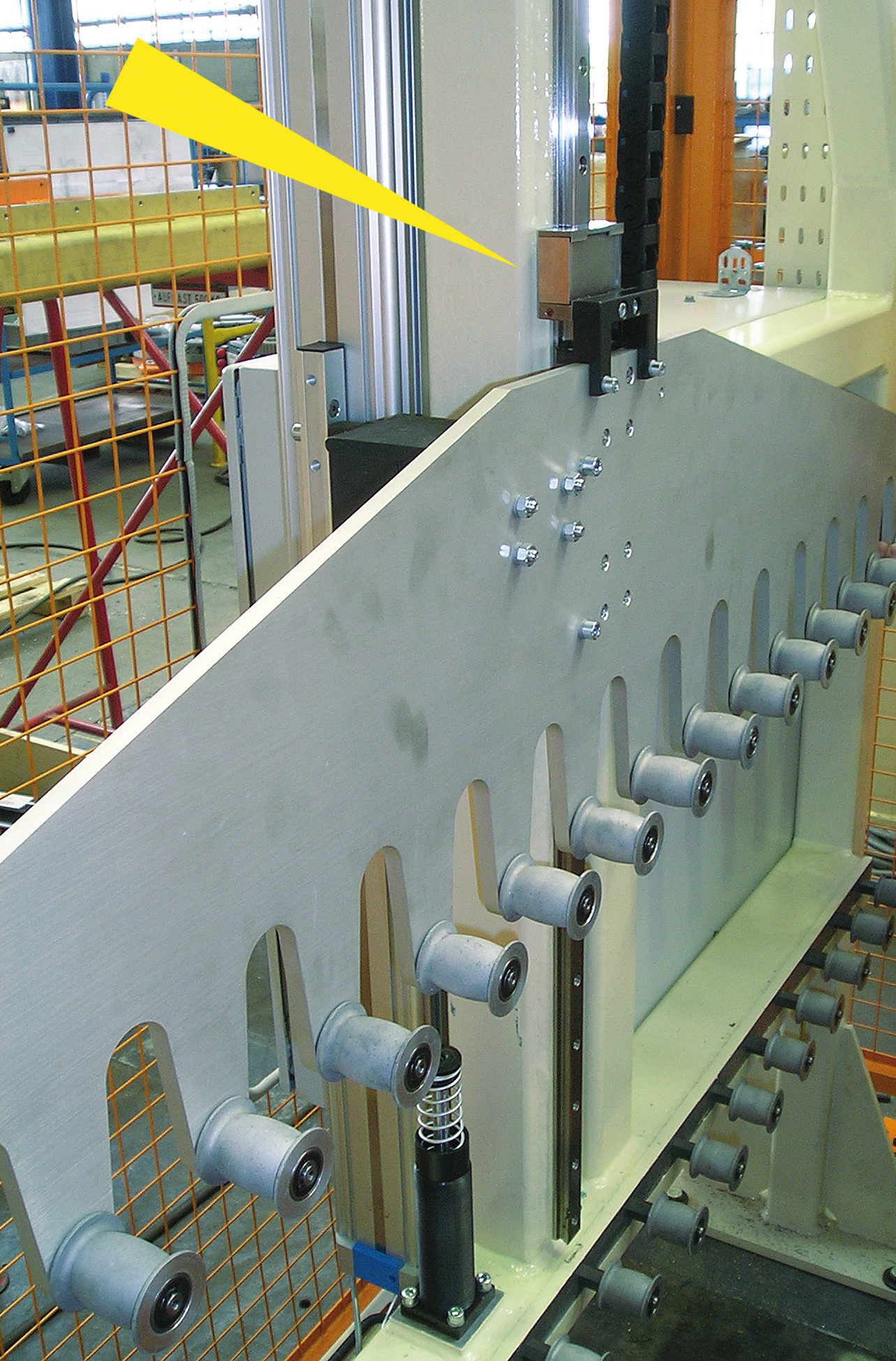

ACE Clamping elements secure the material feed systems of machines in the tyre industry
The goods accumulator and compensator of a material dispenser carries meandering, coiled, highly tear resistant material strips, which are fed at high speed to a tyre-manufacturing machine. To prevent damage to the machine, innovative and particularly compact LOCKED SLK clamping elements from ACE are used.Matching Applications
