Automation Control
MC33 to MC64
Product Series
  • Miniature Shock Absorbers
  • Industrial Shock Absorbers
  • Heavy Industrial Shock Absorbers
  • Profile Dampers
  • Damping Pads
Product families
  • MC33 to MC64
  • MC33-V4A to MC64-V4A
  • MC33-HT to MC64-HT
  • MC33-LT to MC64-LT
  • SC33 to SC45
  • MA/ML33 to MA/ML64
Basic Types
  • MC33EUM
  • MC45EUM
  • MC64EUM

Industrial Shock Absorbers
MC33 to MC64

High energy absorption and robust design

Self-Compensating
Energy capacity 170 Nm/Cycle to 5,650 Nm/Cycle
Stroke 23.1 mm to 150 mm

The latest damper technology: The combination of the latest sealing technology, annealed guide bearing and integrated positiv stop make these self-compensating shock absorbers from ACE'S MAGNUM range so successful. After all, users benefit from the longer service life of the products, even in the most difficult environments. A continuous outer thread and extensive accessories make their contribution to the success story of the MC33 to MC64.

High energy absorption in a compact design and a wide damping range lead to huge advantages in practice. Alongside generally more compact designs, these small yet very powerful absorbers enable full use of the machine's performance.

These self-compensating industrial shock absorbers are used in all areas of mechanical engineering – especially in automation and for gantries.
Configurator Configure your individual shock absorber with the right accessories Calculation Tool Calculate the right shock absorber for your application
Industrial Shock Absorbers
MC33 to MC64
High energy absorption and robust design
Self-Compensating
Energy capacity 170 Nm/Cycle to 5,650 Nm/Cycle
Stroke 23.1 mm to 150 mm

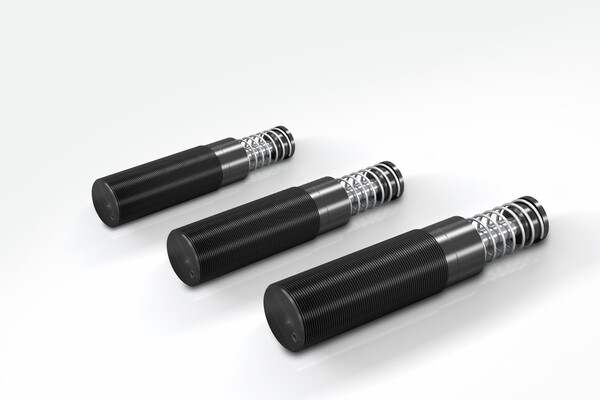

ACE Controls Inc. - Image - MC33 to MC64
ACE Controls International Inc. is not responsible for content on external linked websites.
ACE Controls Inc. - Image - MC33 to MC64

Technical data

Energy capacity 170 Nm/Cycle to 5,650 Nm/Cycle

Stroke 23.1 mm to 150 mm

Impact velocity range 0.15 m/s to 5 m/s. Other speeds on request.

Operating temperature range -12 °C to +66 °C. Other temperatures on request.

Mounting in any position

Positive stop Integrated

Material Outer body: nitride hardened steel; Piston rod: hard chrome plated steel; Rod end button: hardened steel and corrosion-resistant coating; Return spring: zinc plated or plastic-coated steel; Accessories: steel with black oxide finish or nitride hardened

Damping medium Automatic Transmission Fluid (ATF)

Application field linear slides, swivel units, turntables, portal systems, machines and plants, tool machines, machining centres, Z-axes, impact panels, handling modules

Note

A noise reduction of 3 dB to 7 dB is possible when using the special impact button (PP). For emergency use only applications and for continous use (with additional cooling) it is sometimes possible to exceed the published max. capacity ratings. In this case, please consult ACE.

Safety information

External materials in the surrounding area can attack the seal components and lead to a shorter service life. Please contact ACE for appropriate solution suggestions. Do not paint the shock absorbers due to heat emission.

On request

Special oils, nickel-plated, increased corrosion protection, mounting inside air cylinders or other special options are available on request.

  • linear slides
  • swivel units
  • turntables
  • portal systems
  • machines and plants
  • tool machines
  • machining centres
  • Z-axes
  • impact panels
  • handling modules

Application Examples

Opening and closing system for heavy barriers
Industrial Shock Absorbers - MC33 to MC64
Opening and closing system for heavy barriers
Industrial shock absorbers MAGNUM MC64150 from ACE are integrated into the overall safety design for the Amsterdam metro system. In contrast to previous solutions, they ensure rapid opening and stopping for a five-ton barrier located at the end of...
Opening and closing system for heavy barriers
Carriage constructions for sport robots
Industrial Shock Absorbers - MC33 to MC64
Carriage constructions for sport robots
Serving a similar purpose, several ACE dampers are installed in Jada, the triple-axis, free-moving badminton robot. In order for the badminton robot to be capable of playing, it must be able to change direction in the shortest time possible. Jada ...
Carriage constructions for sport robots
Emergency separation systems for underwater pipelines
Industrial Shock Absorbers - MC33 to MC64
Emergency separation systems for underwater pipelines
A pipeline from the rig to the well head that is as flexible as possible is considered to be a quick-disconnect connection in an emergency. Nevertheless, this connection made at the oil source on the sea floor is an Achilles heel. If the connectio...
Emergency separation systems for underwater pipelines
Braking systems for gripper carriages
Industrial Shock Absorbers - MC33 to MC64
Braking systems for gripper carriages
In this design, driven by rodless pneumatic cylinders, two gripper carriages move independently of each other at speeds of 2 to 2.5 m/s. ACE industrial shock absorbers from the product family MC33 to MC64 are used as brake systems, which have to s...
Braking systems for gripper carriages

Application Areas

  • linear slides
  • swivel units
  • turntables
  • portal systems
  • machines and plants
  • tool machines
  • machining centres
  • Z-axes
  • impact panels
  • handling modules
These self-compensating industrial shock absorbers are used in all areas of mechanical engineering – especially in automation and for gantries.
