Automation Control
PMCN150 to PMCN600
Product Series
  • Miniature Shock Absorbers
  • Industrial Shock Absorbers
  • Heavy Industrial Shock Absorbers
  • Profile Dampers
  • Damping Pads
Product families
  • MC5 to MC75
  • MC150 to MC600
  • MC150-V4A to MC600-V4A
  • PMCN150 to PMCN600
  • PMCN150-V4A to PMCN600-V4A
  • SC190 to SC925
  • SC²25 to SC²190
  • SC²300 to SC²650
  • MA30 to MA900
Basic Types
  • PMCN150EUM
  • PMCN225EUM
  • PMCN600EUM

Miniature Shock Absorbers

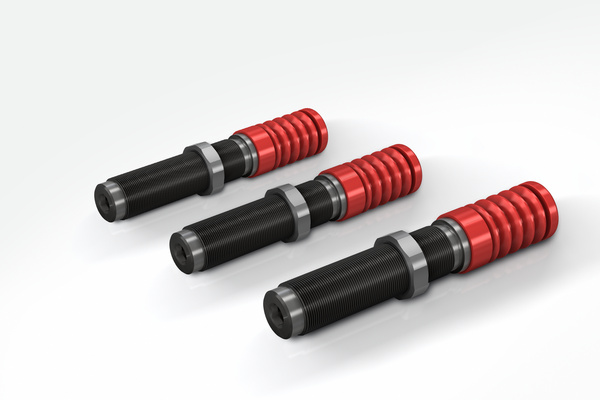

PMCN150 to PMCN600

Reliable protection against fluids

Self-Compensating, Rolling Diaphragm Technology, TPU Bellow
Energy capacity 20 Nm/Cycle to 136 Nm/Cycle
Stroke 12 mm to 25 mm

Hermetically sealed: The shock absorbers from the ACE Protection family PMCN have a compact, perfectly sealed cap as a special feature.

This protection bellows, made of TPU (thermoplastic polyurethane), safely encapsulates the proven ACE rolling diaphragm from the outside environment. Aggressive cutting, lubricating and cleaning agents don't stand a chance and the function of the maintenance-free, ready-to-install shock absorber is retained. They are also available in full stainless steel.

The PMCN range is a good alternative to the SP type air bleed collar if no compressed air is available on the machine or system.

Reliable protection against aggressive fluids, these miniature shock absorbers are the first choice everywhere where conventional dampers wear out too quickly, eg. As in machining centers or other applications of mechanical engineering.
Configurator Configure your individual shock absorber with the right accessories Calculation Tool Calculate the right shock absorber for your application
Miniature Shock Absorbers
PMCN150 to PMCN600
Reliable protection against fluids
Self-Compensating, Rolling Diaphragm Technology, TPU Bellow
Energy capacity 20 Nm/Cycle to 136 Nm/Cycle
Stroke 12 mm to 25 mm
ACE Controls Inc. - Image - PMCN150 to PMCN600
ACE Controls International Inc. is not responsible for content on external linked websites.
ACE Controls Inc. - Image - PMCN150 to PMCN600

Technical data

Energy capacity 20 Nm/Cycle to 136 Nm/Cycle

Stroke 12 mm to 25 mm

Impact velocity range 0.06 m/s to 6 m/s. Other speeds on request.

Operating temperature range 0 °C to 66 °C

Mounting in any position

Positive stop Integrated

Material Outer body: steel corrosion-resistant coating; Main bearing: plastic; Piston rod: hardened stainless steel (1.4125, AISI 440C); Bellow: TPU, steel insert: stainless steel (1.4404/1.4571, AISI 316L/316Ti); Rolling diaphragm: EPDM

Damping medium oil, temperature stable

Application field finishing and processing centres, clean room areas, pharmaceutical industry, medical technology, food industry, linear slides, pneumatic cylinders, machines and plants

Note

Final preliminary test must be done on the application.

Safety information

Do not paint the shock absorbers due to heat emission.

On request

Special accessories available on request.

  • finishing and processing centres
  • clean room areas
  • pharmaceutical industry
  • medical technology
  • food industry
  • linear slides
  • pneumatic cylinders
  • machines and plants
