SLAB 170 to SLAB 720

Customisable in many forms

Universal Damping Plates
Natural frequency 12 Hz to 50 Hz
Load range 0.002 N/mm² to 0.5 N/mm²

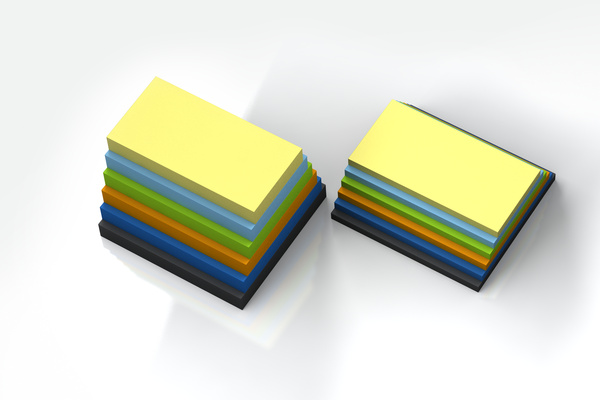

Universally applicable and custom manufactured: ACE supplies cushioning pads in the SL-170 to SL-720 range under its brand name SLAB. These universally applicable absorbers are made from highly cushionable elastic PUR materials. The 12.5 mm or 25 mm thick plates can be supplied with a density of 170 kg/m³ to 720 kg/m³ provide made-to-measure vibration isolation. They can be combined as isolation packages and custom-made to suit requirements, using water-jet cutting. Other made-to-measure options from ACE include on-site vibration measurement and product selection, a special sizing software package, and cost-neutral design.

SLAB plates can be used in many applications, such as foundations for plants and machines, compressors, pumping stations and generators.

ACE Controls Inc. - Image - SLAB 170 to SLAB 720

Technical data

Natural frequency 12 Hz to 50 Hz

Load range 0.002 N/mm² to 0.5 N/mm²

Standard colour yellow, turquoise, green

Standard density SL-170 = 170 kg/m³
SL-210 = 210 kg/m³
SL-275 = 275 kg/m³
SL-450 = 450 kg/m³
SL-600 = 600 kg/m³
SL-720 = 720 kg/m³

Dimensions Widths: up to 1,500 mm
Lengths: up to 5,000 mm
Thicknesses: 12.5 mm and 25 mm

Operating temperature range -30 °C to +70 °C

Environment Resistant against ozone and UV radiation. Chemical resistancy on request.

Material Profile body: mixed cellular PUR-Elastomer (polyurethane)

Application field foundations for presses, plants and machinery, buildings, compressors, staircase bearings, pipeline insulation, crane rail systems, pumping stations and generators, vibrators and crushing systems, conveyor technology, transport routes, bridges

Note

Possibilities for cutting: Water jet cutting, stamping, splitting, sawing and drilling.

Safety information

Fire rating: B2, normally flammable, according to DIN 4102

On request

Special versions with further dimensions such as thicknesses, colours, shapes and drawing parts e.g. curves.

Application Examples

SLAB 170-720 Transformers - sound and vibration

Interference frequencies in a switch cabinet caused two parallel-connected transformers to vibrate so much that working quietly in adjacent rooms was all but impossible. Because they stood on the ground, it was their weight that caused office staff who worked in the same building to feel the effects first hand. The resulting noise was equally bad. ACE-SLAB plates of the type SL-170-25 Fxxxx ...

SLAB 170-720 - Noise reduction

In a hydropower plant, screw pumps caused a noise level of 86 dB. This was happening due to the direct transmission of the forces generated during the pumping process to a water tank. This caused the entire facility to vibrate. The background noise was so loud that it was disturbing power plant employees. By inserting SL-450 and SL-840 SLAB pads between the screw head and the pump, the noise ...
