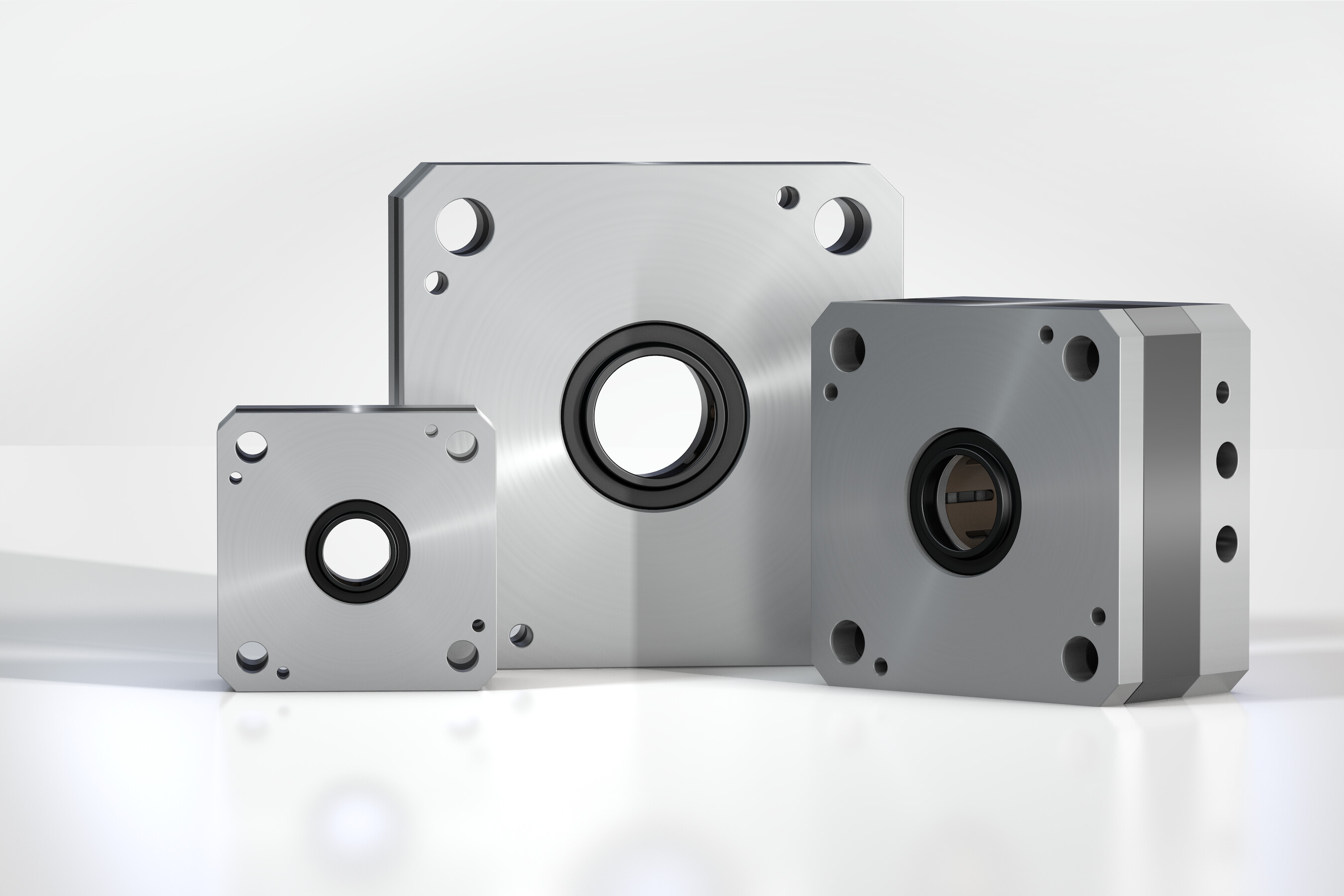

LOCKED PN
Variable stop systems for workpiece heads in production machines
Mech. Engineering & Automation
stacking units, punching/stamping machines, light presses, jacking systems, machines and plants
ACE Rod clamping systems ensure precise and simultaneously variable positioning of workpiece heads in the manufacturing industry

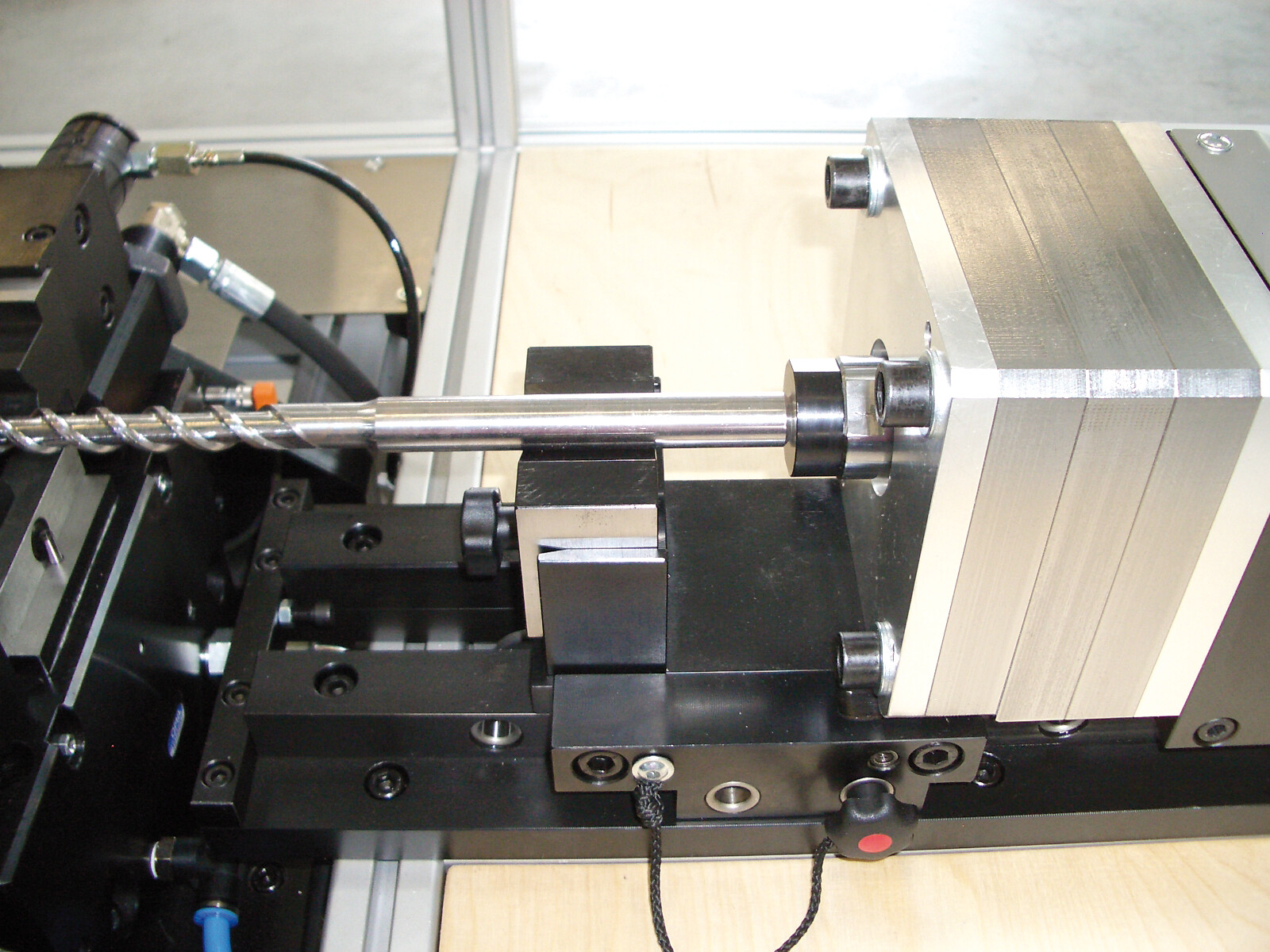

ACE clamping elements are inserted, as a variable stop, during a joining process for the production of drilling tools. They meet the requirements for a precise positioning of the workpiece head and an adaptation of the length tolerance of up to 3 mm, ideally. ACE was awarded the contract because the clamping element is attached on a bar and its PN LOCKED series is specifically designed for this purpose. For clamping on linear guides, rails, axles and shafts, ACE offers a great range of high-performance models.
