MOD-28

Linear motion control

non-Adjustable, speed dependent
Compression and extension force 14 to 2,252 lbs
Stroke 1.97 to 11.81 inch

High quality and long service life: The hydraulic dampers of the MOD family can be used as single or double acting brake. Its wear-resistant surface coating provides a long-lasting, high quality appearance. The heat-treated rod delivers exceptional perfromance and life expectancy. The maintenance free, ready-to-install and closed systems provide a constant feed rate. Thanks to many add-on components the assembly is easy to mount.

The damper can be mounted vertically for damping items such as doors, hatches and large masses.

Configure your individual hydraulic damper with the right accessories

Configurator

Technical Data

Compression and extension force 14 to 2,252 lbs

Stroke 1.97 to 11.81 inch

Outer body diameter 1.1 inch

Piston rod diameter 0.55 inch

Lifetime Approx. 1 Million cycles

Free travel These units have no free travel and are ideal for applications that require this level of performance.

Operating temperature range -30 to 80 °C

Adjustment -

Mounting In rod downwards position

Damping medium Mineral oil

Positive stop External positive stops 1 mm to 1.5 mm before the end of stroke provided by the customer.

Material

Outer body coated steel

Piston rod steel with wear-resistant coating

End fittings zinc plated steel

Technical Notes

Note

Increased break-away force if unit has not moved for some time.

End fittings

They are interchangeable and if necessary must be positively secured by the customer to prevent unscrewing.

Safety instruction

Do not open or heat.

Application Areas

The damper can be mounted vertically for damping items such as doors, hatches and large masses.

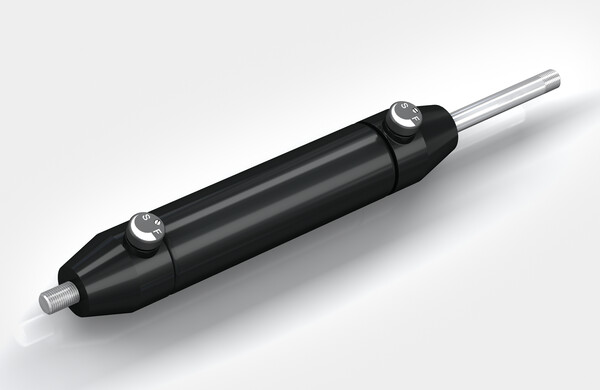

DVC-32

Can be regulated separately in any stroke position: The hydraulic dampers of the product family DVC-32 are the first dampers to have the ability to have the in and out speeds adjusted independently from the outside and therefore more precisely.

Learn more

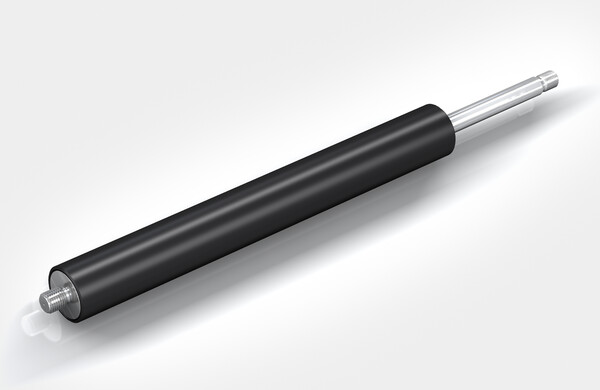

HBD-15 to HBD-40

ACE Controls HBD hydraulic dampers are maintenance-free, self-contained and sealed units.

Learn more

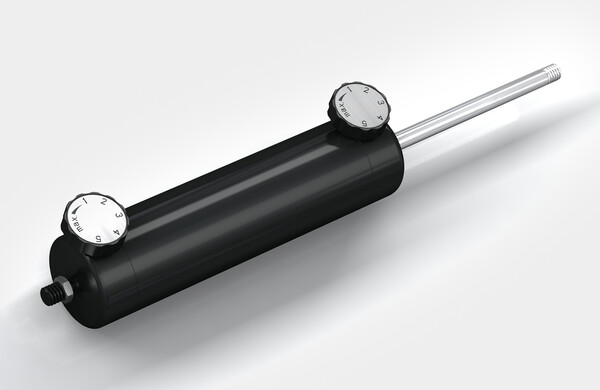

HBD-50 to HBD-85

Motion control in both directions: The hydraulic dampers of the product family HBD can be adjusted independently in both the push and pull direction.

Learn more

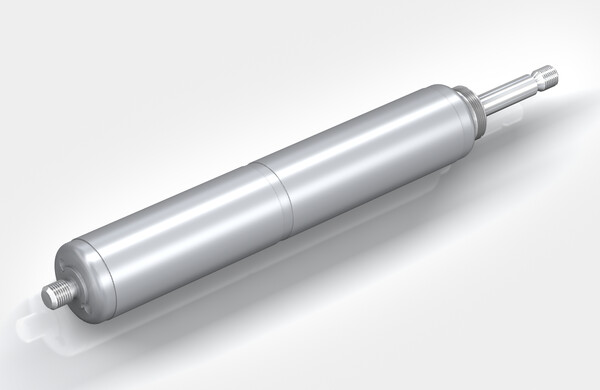

HBS-28 to HBS-70
