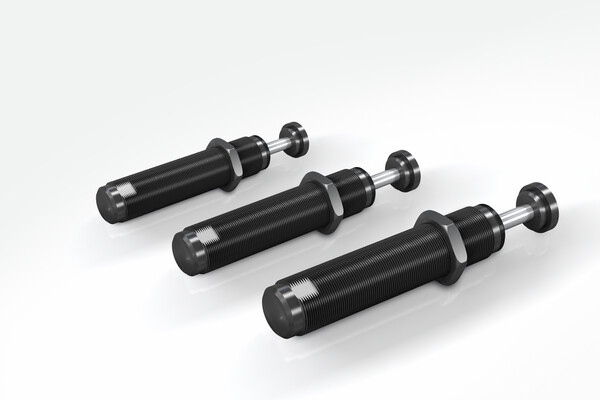

Miniature Shock Absorbers
S14 to S25
Long stroke and soft impact
Self-Compensating, Soft-Contact
Energy capacity per stroke 25 to 110 Nm/cycle
Stroke 16 to 40 mm

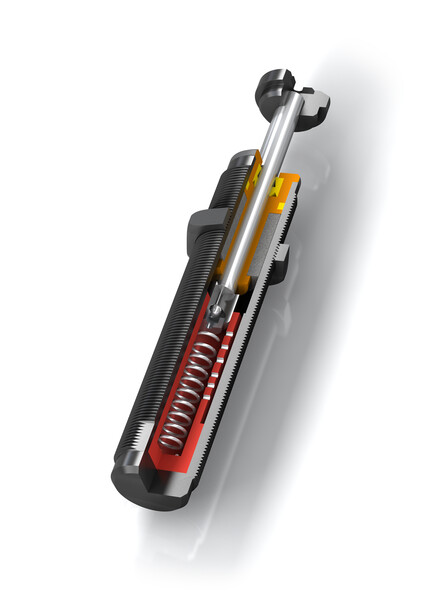

Ideal for soft damping: The S found in the model code from the ACE product family S14 to S25 stands for 'soft contact'. These miniature shock absorbers manufactured from one solid piece are designed in such a way that they can be setup with a linear or a progressive braking curve. The soft damping character is thanks to the special, long strokes producing smooth deceleration and low reaction forces.

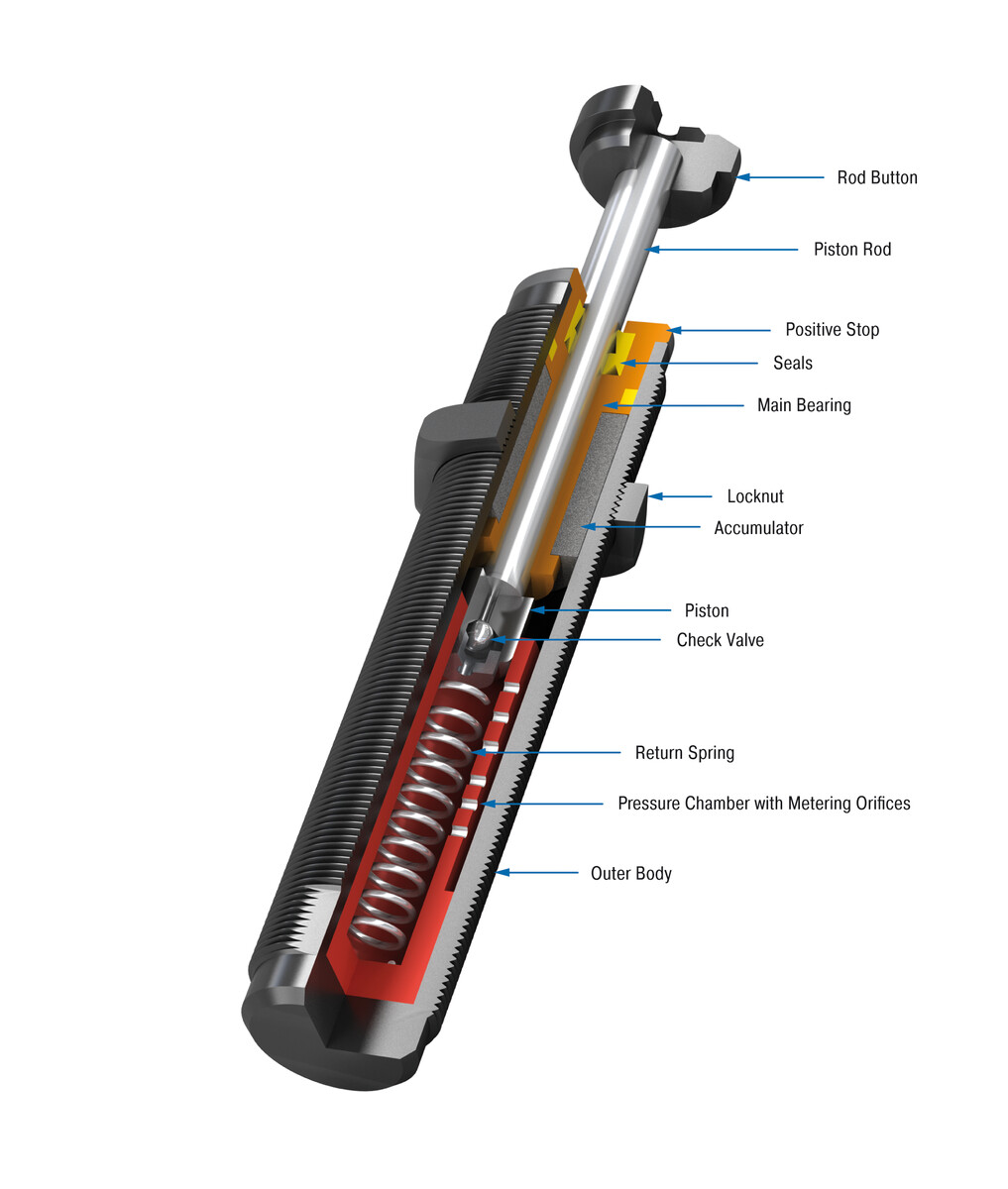

These maintenance-free, ready-to-install hydraulic machine elements are equipped with an integrated positive stop. The use of side load adapter allows impact angles of up to 25°. Thanks to the designed overlapping effective weight ranges, these dampers cover an effective load range of below 1 kg to more than 2,000 kg!
The miniature shock absorbers from the S14 to S25 product family are used in mechanical engineering and primarily in the areas of handling and automation.
The miniature shock absorbers from the S14 to S25 product family are used in mechanical engineering and primarily in the areas of handling and automation.
Configure your individual shock absorber with the right accessories
ConfiguratorCalculate the right shock absorber for your application
