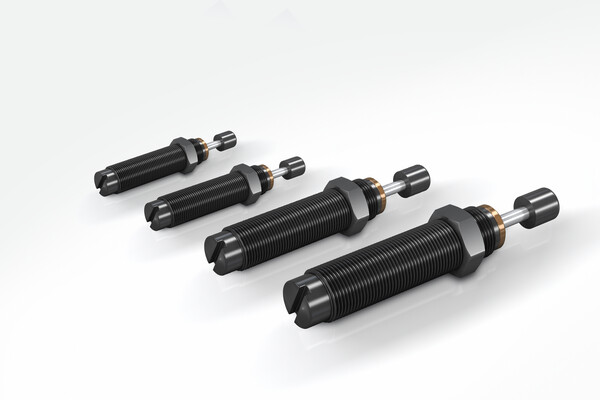

Miniature Shock Absorbers
S05 to S12
Shock absorbers in miniature format
Self-Compensating
Energy capacity per stroke 0.68 to 9 Nm/cycle
Stroke 4 to 10 mm
Ideal for compact, efficient designs: The product family S05 to S12 impresses users with their reduced dimensions and their very short overall lengths and low resetting forces after braking.

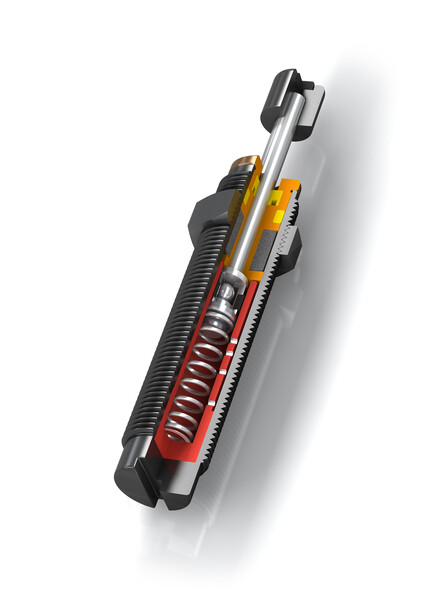

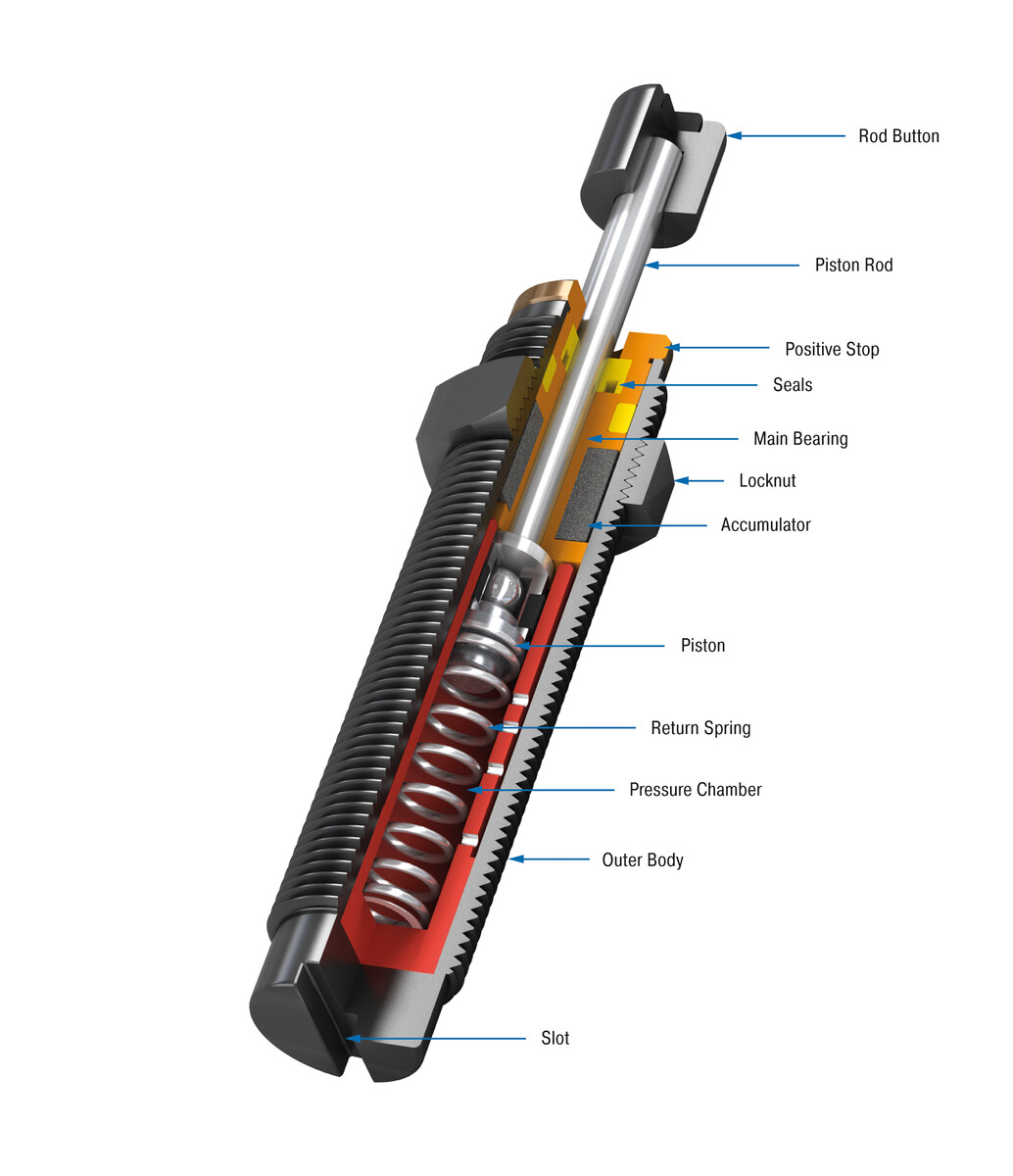

Each damper's solid outer body is filled with temperature-stable oil and includes a continuous thread with lock nut and integrated positive stop. These ACE hydraulic machine elements are maintenance-free and ready for immediate installation, offering comprehensive energy absorption across a wide range of effective weights.
These miniature shock absorbers are perfectly suited for applications in mechanical engineering, medical technology, electro-technology, and robotics.
These miniature shock absorbers are perfectly suited for applications in mechanical engineering, medical technology, electro-technology, and robotics.
Configure your individual shock absorber with the right accessories
ConfiguratorCalculate the right shock absorber for your application
Calculation ToolMiniature Shock Absorbers
S05 to S12
Shock absorbers in miniature format
Self-Compensating
Energy capacity per stroke 0.68 to 9 Nm/cycle
Stroke 4 to 10 mm
Energy capacity per stroke 0.68 to 9 Nm/cycle
Stroke 4 to 10 mm
