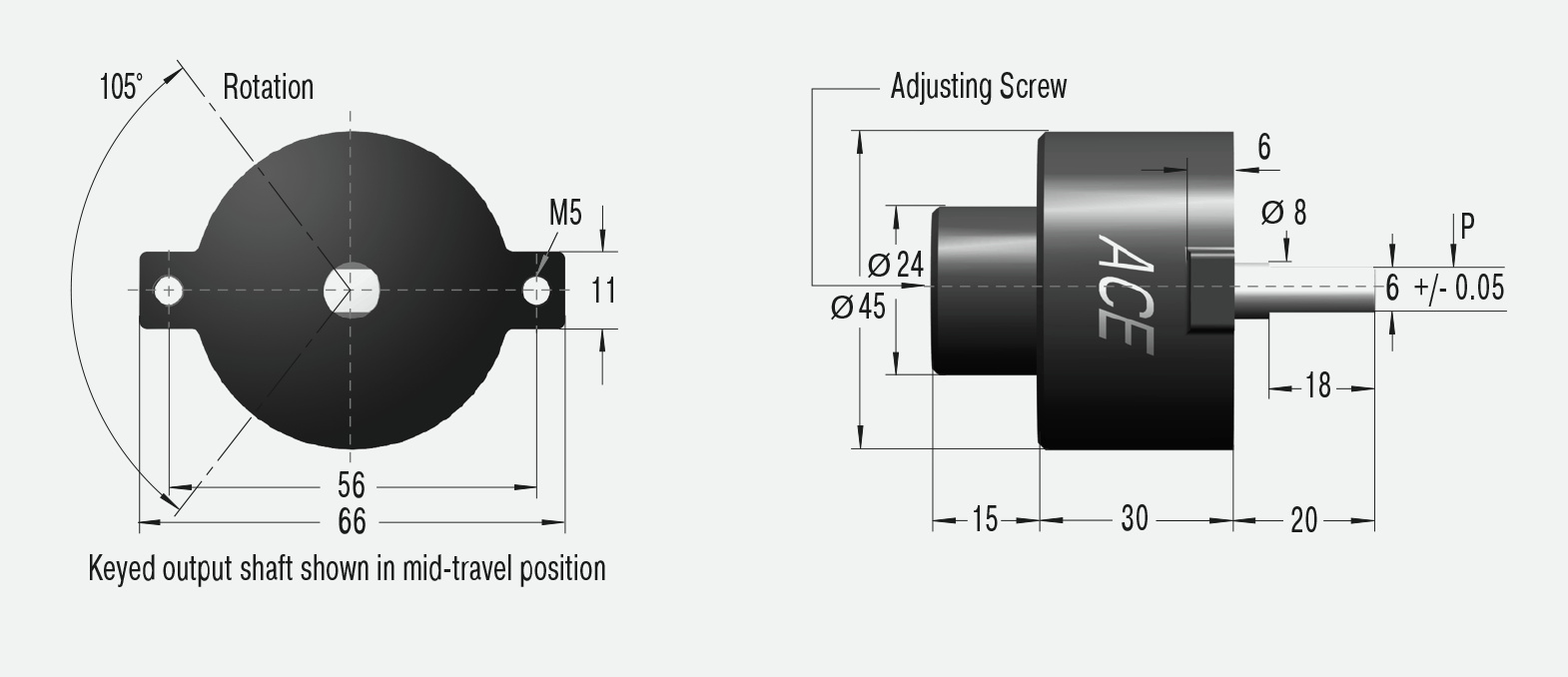

Damping torque 2 - 10 Nm Damping direction left Return Damping Torque 0.5 Nm Construction size Ø 45 mm Lifetime 50,000 cycles, even after this time, the dampers still produce over approx. 80 % of their original damping moment. The service life may be significantly higher or lower, depending on the application. Operating temperature range -5 °C to +50 °C Material Outer body: zinc die-cast; Shaft: steel Mounting in any position Rotation angle max. 105° Maximum side load 50 N | NoteDamping direction: Right hand damping = damping action in clockwise direction (when looking onto the output shaft or output shaft sleeve, depending on the damper type). A play of approx. 5° can occur at the beginning of movement. Safety informationDo not use rotary dampers as supports. Provide an external guide or support. On requestSpecial accessories available on request. |
