Motion Control

TYPES	Damping torque	Damping direction
FRT-K2-103	100 Ncm +/- 20	bidirectional
FRT-F2-203	200 Ncm +/- 40	bidirectional
FRT-F2-303	300 Ncm +/- 80	bidirectional
FRT-F2-403	400 Ncm +/- 100	bidirectional
FRT-K2-502	50 Ncm +/- 10	bidirectional

Rotary Dampers
FRT-F2-203

For very long service life extension

Continuous Rotation
Damping torque 200 Ncm +/- 40

The damping direction of FRT F2/K2 and FRN-F2/K2 is either the right, left or two-sided rotation. With a damping torque of up to 400 Ncm, this product family can even handle heavy components. These ACE rotary dampers can decelerate directly in the pivot point or linear through a gear and gear rack. They are maintenance-free and ready-to-install.

This product is not available for
online order. If you are interested in ordering this
product, click the inquiry form below
and we will contact you.

ACE CAD Traceparts Cadenas Part Solutions

FRT-F2-203

Technical Data

Damping torque 200 Ncm +/- 40

Damping direction bidirectional

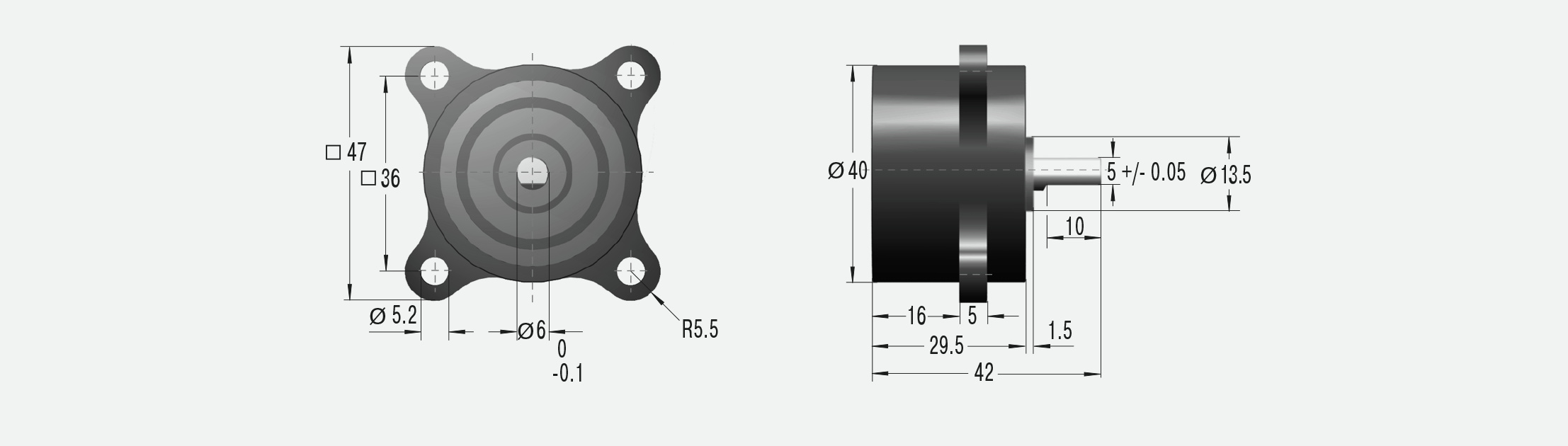

Construction size 40 mm

Rotational speed max. 50 rpm

Lifetime 50,000 cycles (1 cycle = 360° left-hand, 360° right-hand). Even after this time, the dampers still produce over approx. 80 % of their original damping moment. The service life may be significantly higher or lower, depending on the application.

Operating temperature range 0 to 50 °C

Mounting in any position

Material

Outer body plastic

Shaft steel

Technical Notes

Mounting

No axial or radial forces may be induced via the shaft.

Safety instruction

Do not use rotary dampers as supports. Provide an external guide or support.

On request

Special accessories available on request.

Sales Data

Weight
0.115 kg

F and R Weight
-

S Weight
-

Custom tariff number
39269097

Country of origin
JP

Application Examples

Rotary Dampers - FRT-F2/K2 and FRN-F2/K2

Swivel systems for machine keyboards

ACE rotary dampers protect the keyboard. To provide long term protection in arduous and often dirty industrial applications (and also to protect against unauthorised access) the machine keyboard is installed in a lockable and pivoted housing cabin...

Learn more

Family FRT-F2/K2 and FRN-F2/K2
Operating & Mounting Instructions	PDF (857.7 KB)	2026-04-23
