TYPES	Damping torque Ncm	Damping direction
FRT-C2-201	2 +/- 0.6	bidirectional
FRT-C2-301	3 +/- 0.8	bidirectional

Rotary Dampers
FRT-C2-201

Flexible and cost efficient use

Continuous Rotation
Damping torque 2 +/- 0.6 Ncm

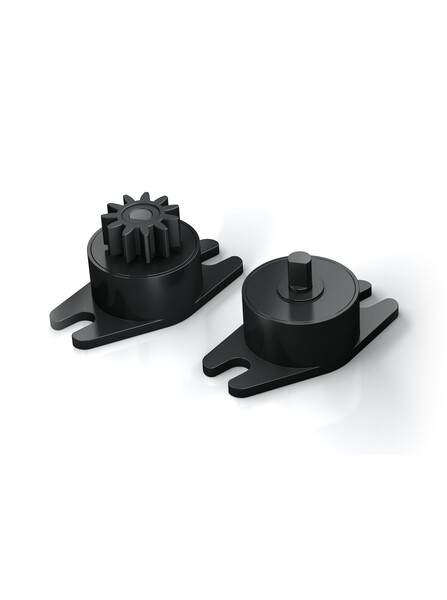

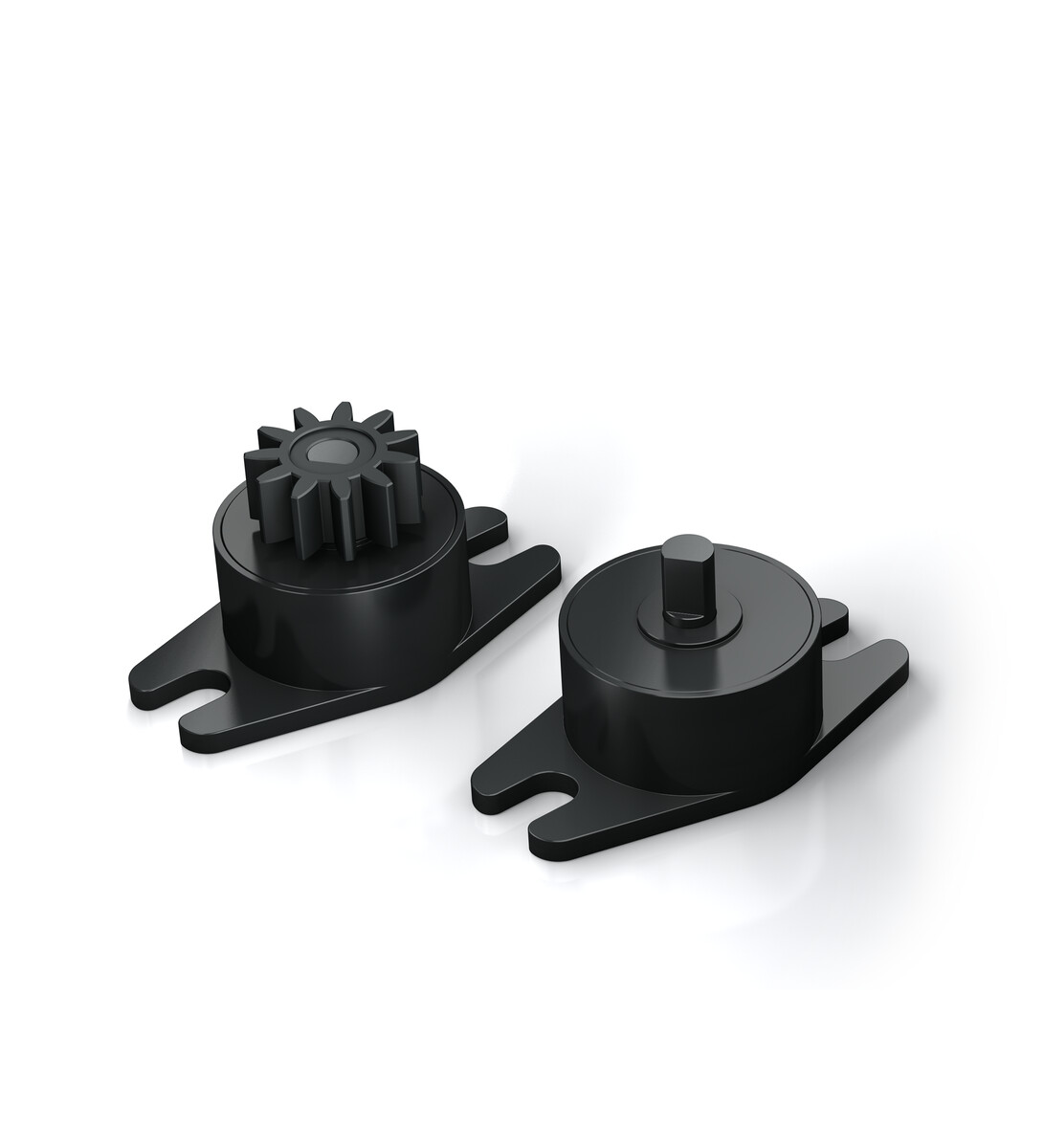

The damping direction of the simple FRT-C2 and FRN-C2 is either right, left or two-sided rotation. These ACE rotary dampers with plastic body can decelerate directly in the pivot point or linear through a gear and gear rack. ACE rotary dampers are maintenance-free and ready-to-install.

This product is not available for
online order. If you are interested in ordering this
product, click the inquiry form below
and we will contact you.

ACE CAD Traceparts Cadenas Part Solutions

FRT-C2-201

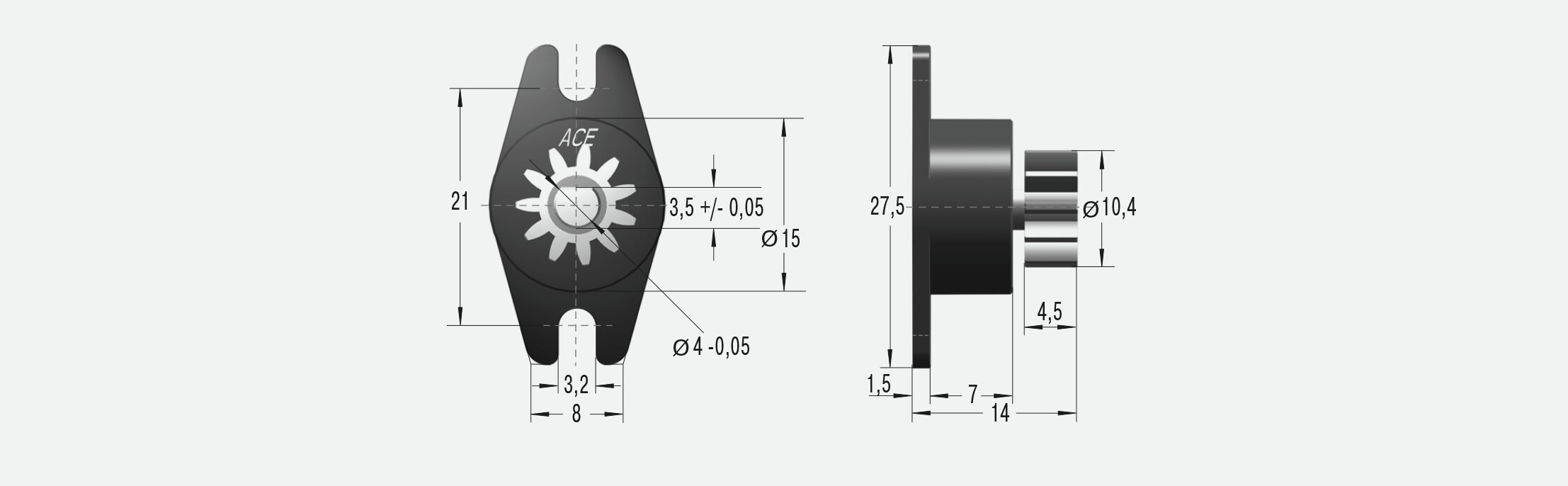

Technical data

Damping torque 2 +/- 0.6 Ncm

Damping direction bidirectional

Gear without

Construction size Ø 15 mm

Rotational speed max. 50 rpm

Lifetime 50,000 cycles (1 cycle = 360° left-hand, 360° right-hand). Even after this time, the dampers still produce over approx. 80 % of their original damping moment. The service life may be significantly higher or lower, depending on the application.

Operating temperature range 0 °C to 50 °C

Pressure angle 20°

Material Outer body, Shaft: plastic; Gear: Outer body, Shaft: plastic

Mounting in any position

Tooth Involute gearing

P.C.D. 8.8 mm

No. of teeth 11

Module 0.8

Technical Notes

Mounting information

No axial or radial forces may be induced via the shaft.

Safety information

Do not use rotary dampers as supports. Provide an external guide or support.

On request

Special designs available on request. Toothed plastic racks (modules 0.5 to 1.0) are available for the rotary dampers with pinions.

Sales data

Weight
0.002 kg

F and R Weight
0.0 kg

S Weight
0.0 kg

Customs tariff number
39269097

Country of origin
JP

Family FRT-C2 and FRN-C2
Operating & Mounting Instructions	PDF (870 kB)	20/06/2022
