LEV-52221-M10

Balancing elements for stability

Height-Adjustable Machine Feet
Natural frequency 8.0 Hz to 18.0 Hz
Load range 45 kg to 230 kg

Stability and protection against impacts: Machines and systems placed on the adjustable machine feet in ACE's Levelling Mounts product family can be stabilised perfectly. These maintenance-free machine elements can be levelled extremely accurately, compensating for floor unevenness and so ensuring the stability of anything standing on them. This protects the loads placed evenly on them against damaging impacts and vibrations, reducing operational noise.

They are available in thread sizes of M10 to M24 and are suitable for loads from 45 kg to 5,900 kg. Special types are also available, such as feet with special vibration isolation.

Using LEV levelling mounts, every machine can be kept quiet and safe, above all in production and processing centres, but also in the construction of production lines, assembly stations and many other applications.

CAD Drawings

Product-Downloads

No downloads available for this product
LEV-52221-M10
Height-Adjustable Machine Feet

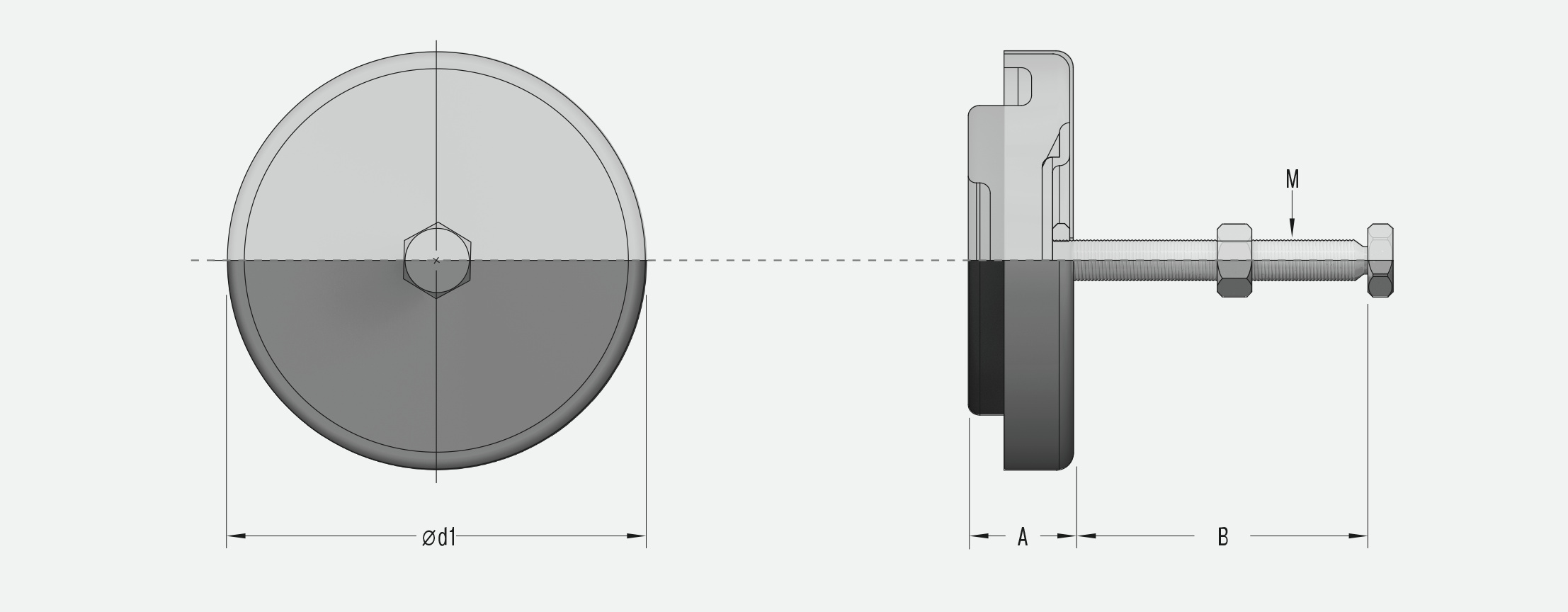

Dimensions

LEV-52221-M10
MM10 mm
D80 mm
H38 mm
L80 mm

Technical data

Natural frequency 8.0 Hz to 18.0 Hz Hz

Load range 45 kg to 230 kg kg

Standard colour yellow

Operating temperature range -30 °C to +80 °C

Environment Resistant against UV radiation

Material Outer body: zinc plated steel, painted; Isolation medium: Neoprene (chloroprene rubber)

Note

Easy to level. Compensates for floor unevenness.

On request

Special vibration-isolating feet according to design and custom-made product. Other special options.
