TYPES	Energy capacity Nm/cycle	Energy capacity Nm/h	Effective weight min. kg	Effective weight max. kg
MC5EUM-1-B	0.68	2,040	0.5	4.4
MC5EUM-2-B	0.68	2,040	3.8	10.8
MC5EUM-3-B	0.68	2,040	9.7	18.7

TYPES

Energy capacity Nm/cycle

Energy capacity Nm/h

Effective weight min. kg

Effective weight max. kg

MC5EUM-1-B

0.68

2,040

0.5

4.4

MC5EUM-2-B

0.68

2,040

3.8

10.8

MC5EUM-3-B

0.68

2,040

9.7

18.7

Miniature Shock Absorbers
MC5EUM-2-B

Shock absorbers in miniature format

Self-Compensating
Energy capacity 0.68 Nm/cycle
Stroke 4 mm

Ideal for compact, efficient designs: The product family MC5 to MC75 impresses users with their reduced dimensions and their very short overall lengths and low resetting forces after braking.

The outer body of each damper, produced from one solid piece, are filled with temperature stable oil, offer a continuous thread incl. a supplied lock nut and also have an integrated positive stop. These hydraulic machine elements from ACE, are ready for immediate installation and are maintenance-free. A comprehensive range of energy absorption with a wide range of effective weight potential are further benefits in these minature units.

These miniature shock absorbers are perfectly suited to use in applications such as mechanical engineering, medical and electro-technology and robotics.

ACE Easy Sizing Don't know Size or Type? Size it!

This product is not available for
online order.

If you are interested in ordering this
product, click the inquiry form below
and we will contact you.

CAD Drawings

Product-Downloads

MC5EUM-2-B

Self-Compensating

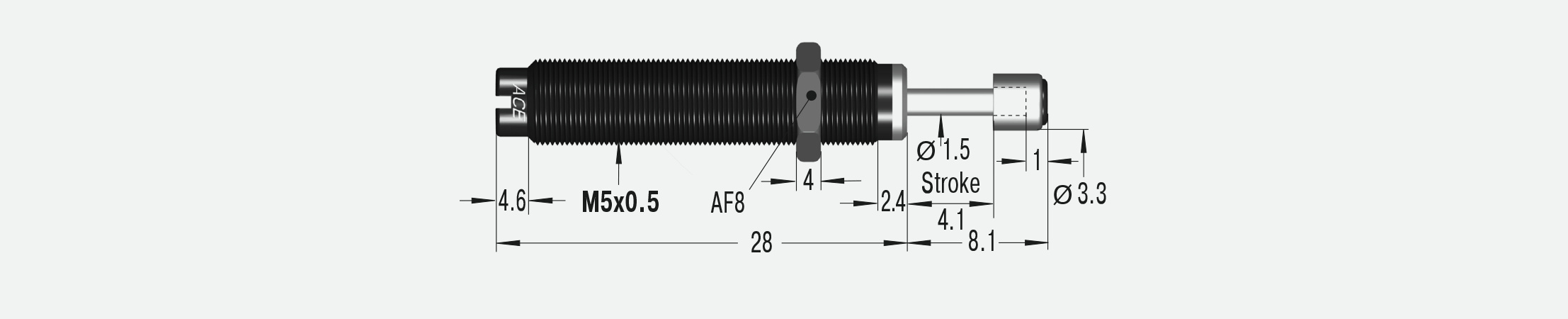

Dimensions

Stroke	4 mm
M	M5x0.5 mm

Technical data

Energy capacity 0.68 Nm/cycle

Energy capacity 2,040 Nm/h

Effective weight min. 3.8 kg

Effective weight max. 10.8 kg

Hardness -2

Return Force min. 1 N

Return Force max. 5 N

Return Time 0.2 s

Side Load Angle max. 2 °

Impact velocity range 0.15 m/s to 4 m/s

Operating temperature range -10 °C to +66 °C

Mounting in any position

Positive stop Integrated

Material Outer body, Accessories: steel corrosion-resistant coating; Piston rod: hardened stainless steel; Rod end button: steel, MC25 and MC75: elastomer insert; Locknut: steel, MC5 and MC9: aluminium

Damping medium oil, temperature stable

Note

If precise end position datum is required consider use of the stop collar type AH.

Safety information

External materials in the surrounding area can attack the seal components and lead to a shorter service life. Please contact ACE for appropriate solution suggestions. Do not paint the shock absorbers due to heat emission.

On request

Increased corrosion protection. Special finishes. Models without rod end button also available on request.

MC5EUM-2-B

Self-Compensating

Application Examples

Miniature Shock Absorbers - MC5 to MC75

Brake components for pneumatic linear modules

Pneumatic linear modules in miniature slide systems ensure high speeds with constant repeat accuracy. In this design, pneumatic end-of-travel damping was deliberately omitted and shock absorbers from ACE were used. This is because the compact MC5 ...

Application Areas

miniature slides
pneumatic cylinders
handling modules
copiers
measuring tables
machines and plants
locking systems

These miniature shock absorbers are perfectly suited to use in applications such as mechanical engineering, medical and electro-technology and robotics.
