TYPES	Energy capacity Nm/cycle	Energy capacity Nm/h	Effective weight min. kg	Effective weight max. kg
MC225EUM-V4A	41	45,000	2.3	25
MC225EUMH-V4A	41	45,000	23.0	230
MC225EUMH2-V4A	41	45,000	180.0	910
MC225EUMH3-V4A	41	45,000	816.0	1,814

Miniature Shock Absorbers
MC225EUMH3-V4A

Exceptionally high endurance with stainless steel corrosion protection

Self-Compensating, Stainless Steel, Rolling Diaphragm Technology
Energy capacity 41 Nm/cycle
Stroke 12.7 mm

Brilliant in every respect: These high performance miniature shock absorbers in stainless steel are based on the MC150 to MC600 product family and its proven damping technology. This means that these special absorbers offer all of the benefits of the MC standard units such as the proven ACE rolling diaphragm technology for maximum service life and direct installation in a pressure chamber with up to approx. 7 bar.

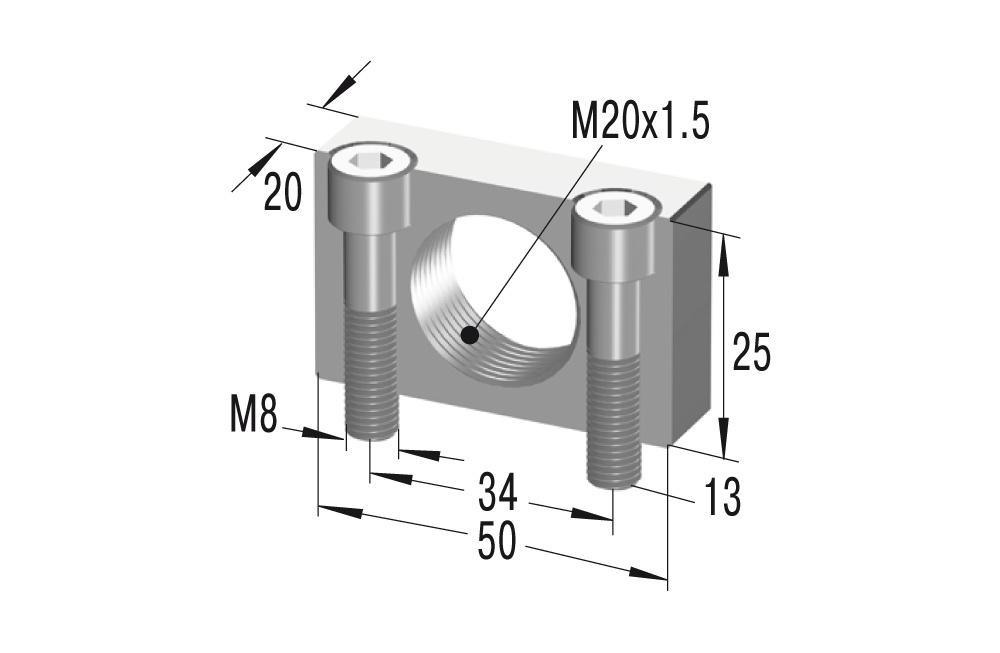

Thanks to perfectly progressive maximum energy absorption and effective weight potential, their use is augmented even further by the outer body and a complete range of accessories made of stainless steel (material 1.4404).

Miniature shock absorbers made of stainless steel are mainly used in medical and electro-technology, but also in shipbuilding, packaging and chemicals industry and in the food processing. For the latter, they are filled with a special oil in order to fulfil the authorisation conditions (NSF-H1) for this market.

ACE Controls Inc. - Image - MC225EUM-V4A

ACE Easy Sizing Don't know Size or Type? Size it!

This product is not available for
online order.

If you are interested in ordering this
product, click the inquiry form below
and we will contact you.

CAD Drawings

MC225EUMH3-V4A

Self-Compensating, Stainless Steel, Rolling Diaphragm Technology

Dimensions

Stroke

12.7 mm

Technical data

Energy capacity 41 Nm/cycle

Energy capacity 45,000 Nm/h

Effective weight min. 816.0 kg

Effective weight max. 1,814 kg

Return Force min. 4 N

Return Force max. 6 N

Return Time 0.3 s

Side Load Angle max. 4 °

Impact velocity range 0.06 m/s to 6 m/s. Other speeds on request.

Operating temperature range 0 °C to 66 °C

Mounting in any position

Positive stop Integrated

Material Outer body, Locknut, Accessories: stainless steel (1.4404, AISI 316L); Main bearing: plastic; Piston rod: hardened stainless steel (1.4125, AISI 440C); Rolling diaphragm: EPDM

Damping medium oil, temperature stable

Note

If precise end position datum is required consider use of the stop collar type AH.

Safety information

External materials in the surrounding area can attack the rolling seal and lead to a shorter service life. Please contact ACE for appropriate solution suggestions. Suitable for use in pressure chambers up to 7 bar.

On request

Special oil with food approval. Special threads or other special options available on request.
