MA150EUM

Stepless adjustment

Adjustable
Energy capacity 22.0 Nm/cycle
Stroke 12.7 mm

The miniature shock absorbers from the MA30 to MA900 product family can be adjusted and precisely adapted to your requirements. For example, the MA150 displays the rolling diaphragm technology from the MC150 to MC600 family and offers all of the advantages of this technology, such as use in pressure chambers. Thanks to long strokes (including 40 mm on the MA900) lower reaction forces result, which provide a soft damping characteristic.

All variations of these units are maintenance-free, ready-to-install machine elements and have an integrated positive stop. They provide the best service where application data changes, where the calculation parameters are not clear or where maximum flexibility in the possible usage is required.

The adjustable miniature shock absorbers from ACE can be used to meet precisly the customer's application and are therefore found everywhere in mechanical engineering and many other applications.

CAD Drawings

Product-Downloads

MA150EUM
Adjustable

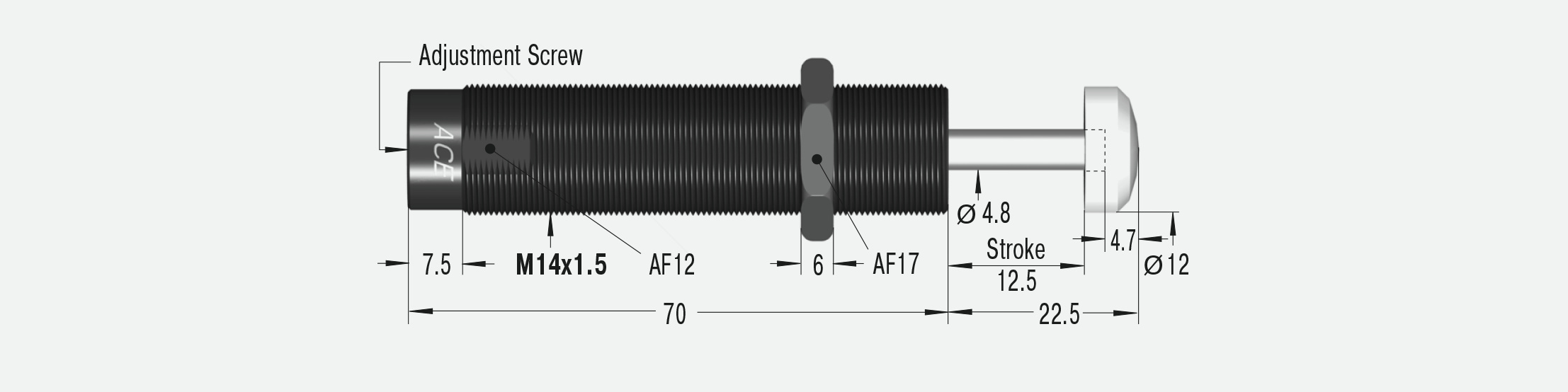

Dimensions

MA150EUM
Stroke12.7 mm

Technical data

Energy capacity 22.0 Nm/cycle

Energy capacity 35,000 Nm/h

Effective weight min. 1.00 kg

Effective weight max. 109 kg

Return Force min. 3.0 N

Return Force max. 5.0 N

Return Time 0.4 s

Side Load Angle max. 2 °

Impact velocity range At speeds of 0.3 m/s the maximum allowed energy is approx. 2 Nm. Where higher energies occur use a shock absorber for the initial impact. Avoid high impact velocities.

Operating temperature range 0 °C to 66 °C

Mounting in any position

Positive stop Integrated

Adjustment Hard impact at the start of stroke, adjust the ring towards 9 or PLUS. Hard impact at the end of stroke, adjust the ring towards 0 or MINUS.

Material Outer body, Accessories: steel corrosion-resistant coating; Piston rod: hardened stainless steel

Damping medium oil, temperature stable

Note

Damper is preset at delivery in a neutral position between hard and soft.

Safety information

External materials in the surrounding area can attack the seal components and lead to a shorter service life. Please contact ACE for appropriate solution suggestions.

On request

Nickel-plated, weartec finish (seawater resistant) or other special options available on request.
