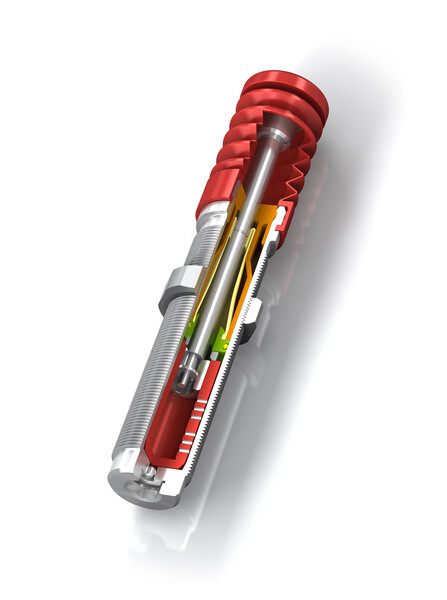

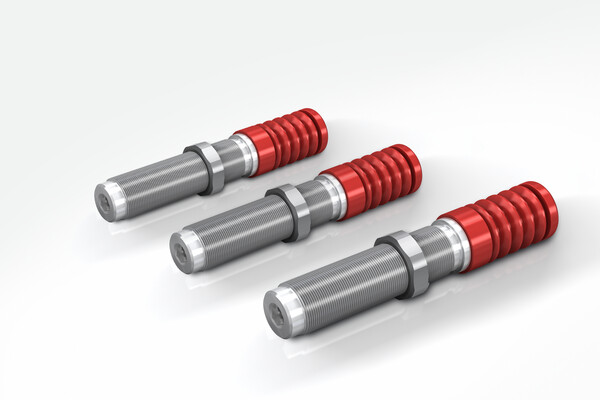

Miniature Shock Absorbers
PMCN150-V4A to PMCN600-V4A
Optimum corrosion protection
Self-Compensating, Rolling Diaphragm Technology, TPU Bellow
Energy capacity per stroke 20 to 136 Nm/cycle
Stroke 12 to 25 mm

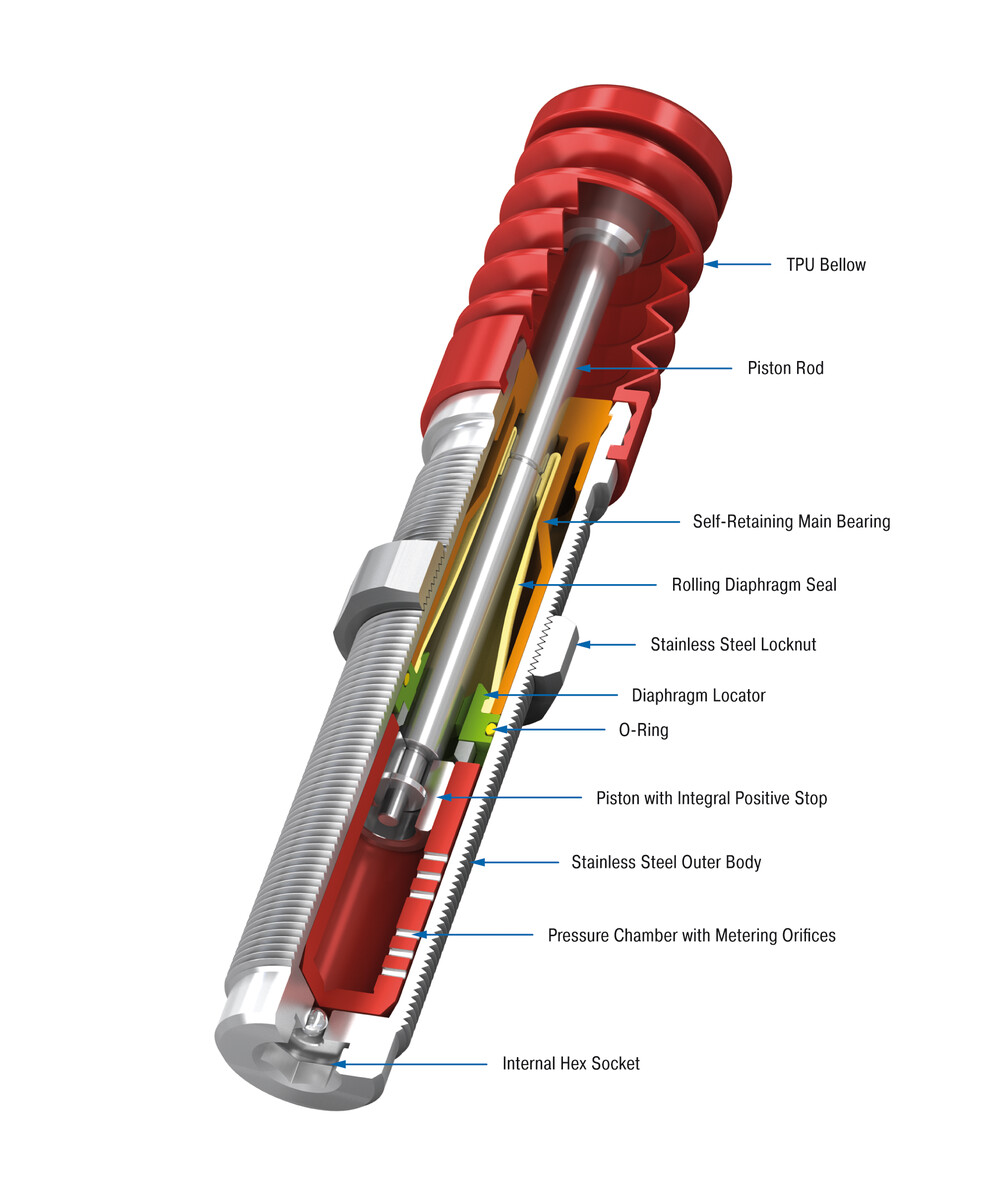

Hermetically sealed and rustproof: The Protection product family PMCN is also available in a stainless steel design. This is or particular interest to the food and packaging industries. Their main special feature is the compact, totally sealed bellow between the body and the cap made of TPU (thermoplastic polyurethane). This protection safely encapsulates the ACE rolling diaphragm from the outside environment. Aggressive fluids don't stand a chance.
The PMCN ramge is an excellent alternative if the accessory option of the SP type air bleed collar cannot be used due to a lack of compressed air.
The PMCN range miniature shock absorbers, produced from stainless steel, are primarily suitable for use in the food industry, but are also wherever an elegant look is important e.g. in shipbuilding.
The PMCN range miniature shock absorbers, produced from stainless steel, are primarily suitable for use in the food industry, but are also wherever an elegant look is important e.g. in shipbuilding.
Configure your individual shock absorber with the right accessories
ConfiguratorCalculate the right shock absorber for your application
Calculation ToolMiniature Shock Absorbers
PMCN150-V4A to PMCN600-V4A
Optimum corrosion protection
Self-Compensating, Rolling Diaphragm Technology, TPU Bellow
Energy capacity per stroke 20 to 136 Nm/cycle
Stroke 12 to 25 mm
Energy capacity per stroke 20 to 136 Nm/cycle
Stroke 12 to 25 mm
