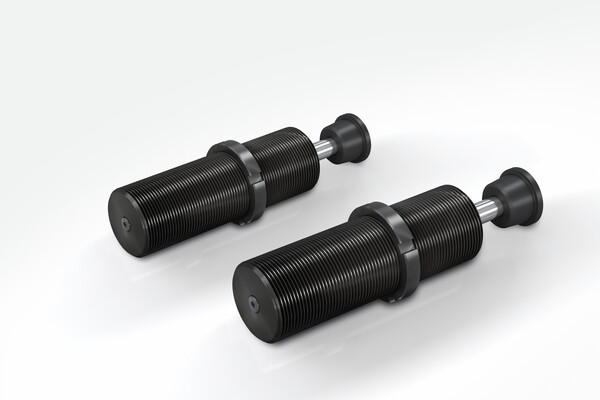

Industrial Shock Absorbers
SC33 to SC45
Piston tube design for maximum energy absorption
Self-Compensating, Piston Tube Technology
Energy capacity per stroke 155 to 680 Nm/cycle
Stroke 23.1 to 48.6 mm
True performers: The combination of the proven sealing technology from the MAGNUM range including membrane accumulator with the well-known piston tube technology from the SC² family makes the SC33 to 45 absorber models so strong and durable. The increase of the oil volume ensures the maximum effective weights. Short stroke lengths of 25 mm to 50 mm lead to shorter braking times in combination with a high energy absorption.
These dampers safely and reliably decelerate rotary movements without unwanted recoil effects. Assembly close to the pivot point is possible. The low impact speeds with this are managed with ease by ACE's generation of piston tubes.
These self-compensating industrial shock absorbers can be relied on in mechanical engineering. They are used in pivot units, rotary tables, robot arms or integrated else where in construction designs.
These self-compensating industrial shock absorbers can be relied on in mechanical engineering. They are used in pivot units, rotary tables, robot arms or integrated else where in construction designs.
Configure your individual shock absorber with the right accessories
ConfiguratorCalculate the right shock absorber for your application
Calculation ToolIndustrial Shock Absorbers
