Viscoelastic Shock Absorbers

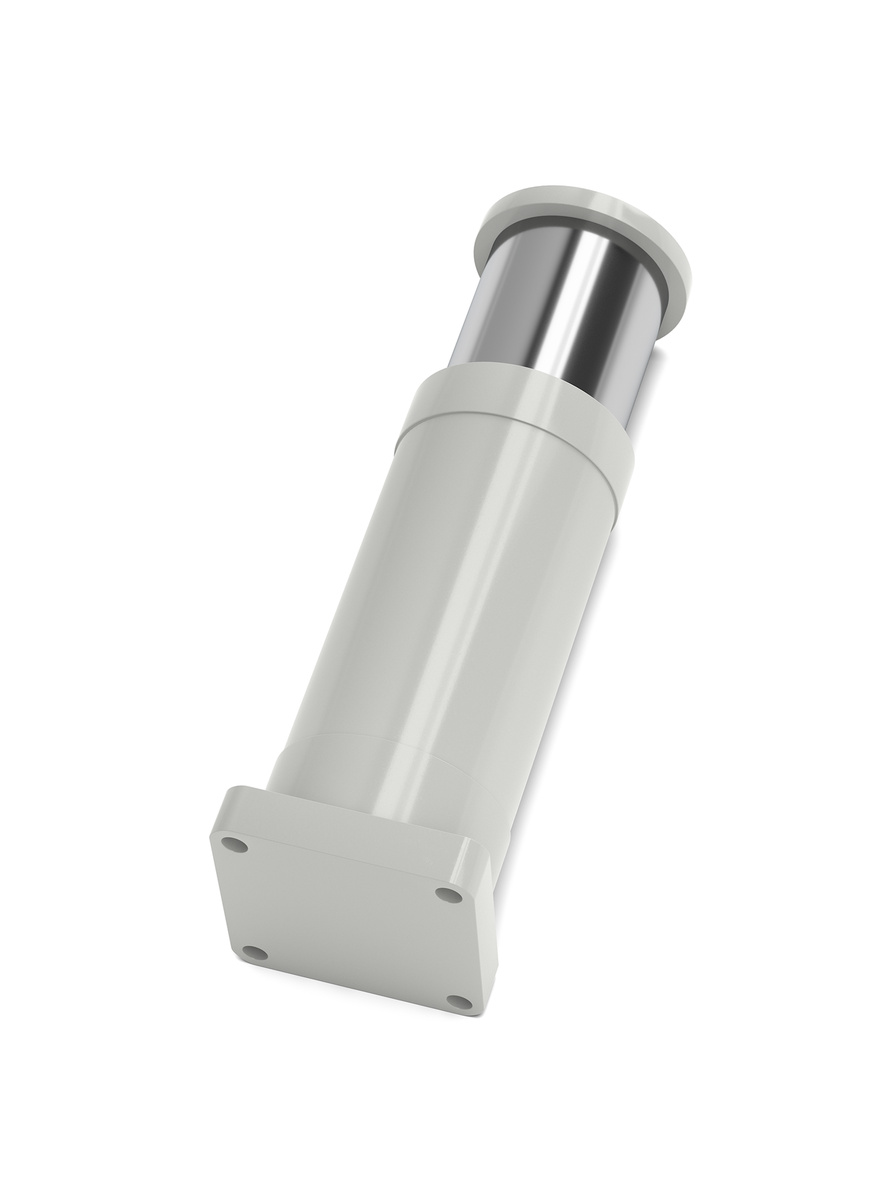

VS-BA5-FA Rear Flange

Simple Design – High reliability

Energy capacity 25,000 Nm/Cycle to 150,000 Nm/Cycle
Stroke 105 mm to 180 mm

The self-adjusting Viscoelastic Shock Absorbers are designed on the principals of hydrostatic compression to combine the funtions of a shock absorber and a spring.

The advantages are a high damping coefficient, a low sensitivity to temperature changes and increased security by integrated static preload.

Viscoelastic shock absorbers are being used across a wide range of applications within heavy industry. Examples include, Material Handling, Rolling Mills, Defense, Waterways and Paper production.
Viscoelastic Shock Absorbers
VS-BA5-FA Rear Flange
Simple Design – High reliability
Energy capacity 25,000 Nm/Cycle to 150,000 Nm/Cycle
Stroke 105 mm to 180 mm
ACE Controls Inc. - Image - VS-BA5-FA Rear Flange
ACE Controls International Inc. is not responsible for content on external linked websites.
ACE Controls Inc. - Image - VS-BA5-FA Rear Flange

Technical data

Energy capacity 25,000 Nm/Cycle to 150,000 Nm/Cycle

Stroke 105 mm to 180 mm

Dynamic force range 167,000 N to 1,100,000 N

Static force range 174,000 N to 740,000 N

Impact velocity range 0.5 m/s bis 5 m/s. Other speeds on request.

Operating temperature range -20 °C to +50 °C. Other temperatures on request.

Mounting In any position

Positive stop Integrated

Material Outer body, Rod end button: steel painted grey; Piston rod: zinc plated steel

Damping medium Visco elastic fluid

Note

The shock absorber can be pushed through its stroke. In creep speed conditions the shock absorber provides minimal resistance and there is no braking effect.

On request

Special options.
