Basic Types
TYPESEnergy capacity Nm/cycleEnergy capacity emergency use Nm/cycleStroke max. mm
TC64-62-S45063062
TC74-76-S9801,37276
TC83-73-S1,9402,71573
TC134-146-S7,31010,230146
TC146-67-S8,33011,66067
TC150-178-S8,86012,400178
TC153-178-S7,26010,165178
TC176-198-S12,72517,810198

TC83-73-S

Compact powerhouse

Crane Installations
Energy capacity 1,940 Nm/cycle
Stroke max. 73 mm

For even more protection: The profile dampers from the TC range of the ACE TUBUS-Series can also be used as safety dampers. These maintenance-free, ready-to-install damping elements made of co-polyester elastomer have been specially developed for use in crane systems and fulfil the international industry standards OSHA and CMAA. In the special TC-S design, managed to achieve the spring rate required for crane systems with the unique dual concept.

Whether TC-S or TC, this range of models represents a cost-effective solution with high energy absorption for energy management systems. The very small and light design of Ø 64 mm to Ø 176 mm progressively covers energy absorption within a range of 450 Nm to 17,810 Nm.

CAD Drawings

Product-Downloads

No downloads available for this product
TC83-73-S
Crane Installations

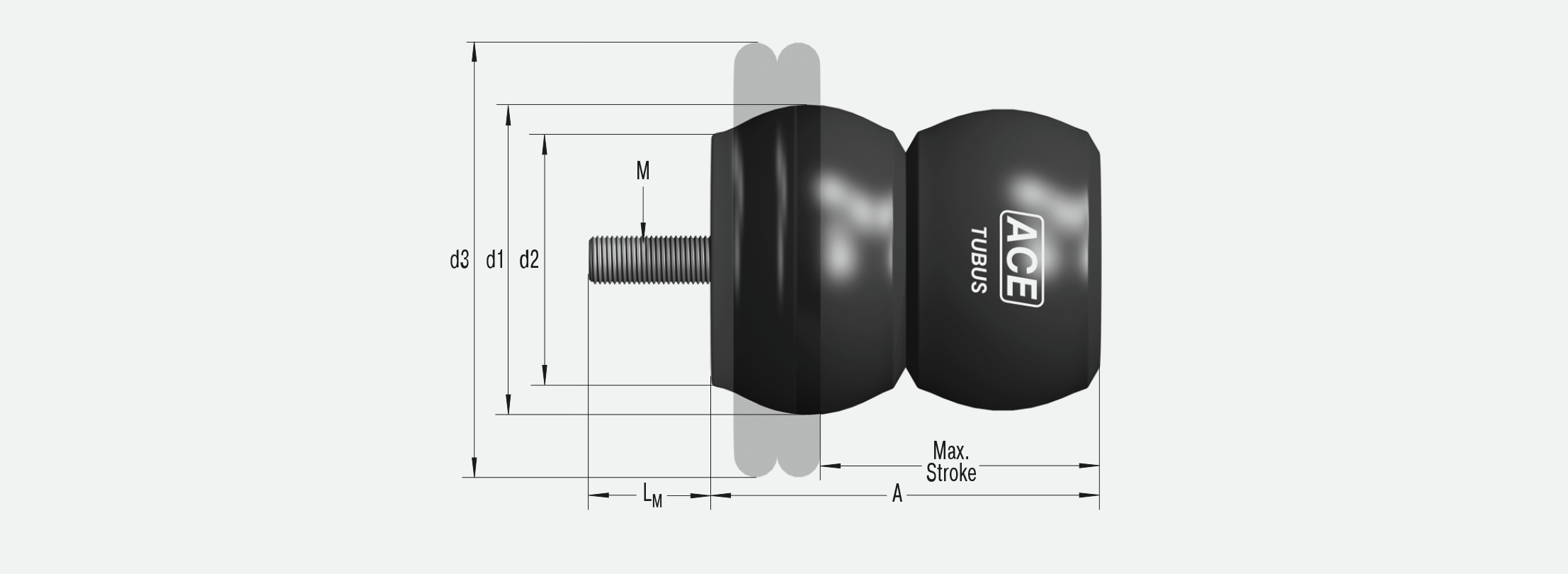

Dimensions

TC83-73-S
Stroke max.73 mm
A94 mm
d183 mm
d269 mm
d3127 mm
MM12 mm
LM12 mm

Technical data

Energy capacity 1,940 Nm/cycle

Energy capacity emergency use 2,715 Nm/cycle

Energy absorption 31 % to 64 %

Dynamic force range 80,000 N to 978,000 N

Operating temperature range -40 °C to +90 °C

Construction size 64 mm to 176 mm

Material hardness rating Shore 55D Shore

Material Profile body: co-polyester elastomer

Mounting in any position

Environment Resistant to microbes, seawater or chemical attack. Excellent UV and ozone resistance. Material does not absorb water or swell.

Impact velocity range Max. 5 m/s

Torque max. M12: 50 Nm
M16: 40 Nm (DIN912)
M16: 120 Nm (shouldered screw)

Note

Suitable for emergency stop applications and for continous use. For applications with preloading and increased temperatures please consult ACE.

On request

Special strokes, -characteristics, -spring rates, -sizes and -materials.

General information

Application Examples

TUBUS TC-TCS - Motion platforms perfectly protected
TUBUS TC-TCS - Motion platforms perfectly protected
Whether for aircraft cockpits, train drivers’ cabs or passenger vehicles: the motion principle of platforms for simulators is always the same. Type TA profile dampers and type TC and TC-S safety dampers from ACE are used to protect the x, y and z-axes with their differing requirements in the end positions. The cost-effective emergency stops safeguard the construction, for example, in the ...
TUBUS TC - Agricultural Machinery
TUBUS TC - Agricultural Machinery
TUBUS profile dampers give tele-wheel loaders strong stability. With their function of limiting swinging movement, they secure machines when cornering and loading and provide a high degree of comfort and safety as well as securing the loaders. A further advantage is that the shovel can be loaded up to its full capacity for better performance when levelling and pushing. Small cost, large force ...

Application Areas

  • crane systems
  • loading and lifting equipment
  • hydraulic devices
  • electro-mechanical drives
The profile dampers from the TC range protect cranes, loading and lifting equipment, hydraulic units and much more.
×
