Safety Products
Product Series
  • Safety Shock Absorbers
  • Safety Dampers
  • Clamping Elements
  • Viscoelastic Shock Absorbers
Product families
  • SCS33 to SCS64
  • SCS38 to SCS63
  • CB63 to CB160
  • EB63 to EB160
  • SDP63 to SDP160
  • SDH38 to SDH63
Basic Types
  • CB63EU
  • CB100EU
  • CB160EU
TYPESEnergy capacity Nm/cycleStroke mm
CB100-200EU80,000200
CB100-300EU120,000300
CB100-400EU160,000400
CB100-500EU200,000500
CB100-600EU240,000600

Safety Shock Absorbers

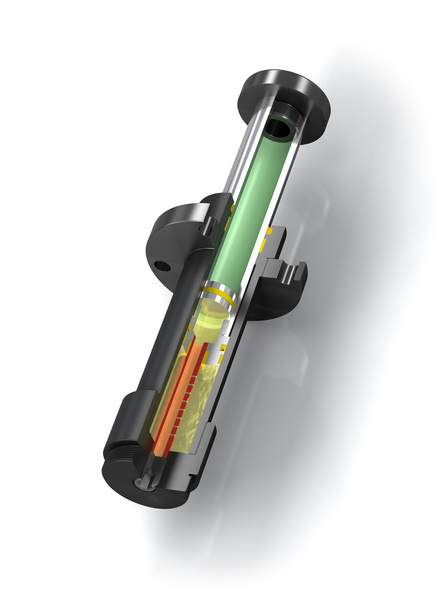

CB100EU

High resetting forces with gas pressure accumulator

Crane Installations, Optimized Characteristic
Energy capacity 80,000 Nm/Cycle to 240,000 Nm/Cycle
Stroke 200 mm to 600 mm

Robust power house: The emergency stop for use in heavy duty areas from the CB63 to CB160 product family has internal system seals. Even dirt or scratches to the piston rod do not lead to a leakage or failure. Compressed gas accumulators allow return forces of up to 100 kN in the CB models, which can make applications in multiple bridge crane systems safer, for example. The absorber body and the robust, large-sized piston rod bearing are also designed for heavy duty operations.

Just like all ACE safety shock absorbers, the characteristic curve or damping characteristics of each individual CB representative is individually adjusted to the respective application.

Whether its crane systems or machines in heavy duty applications e.g. in the metal industry or in mining, these powerful safety shock absorbers reliably protect construction designs against expensive failure.
Safety Shock Absorbers
CB100EU
High resetting forces with gas pressure accumulator
Crane Installations, Optimized Characteristic
Energy capacity 80,000 Nm/Cycle to 240,000 Nm/Cycle
Stroke 200 mm to 600 mm

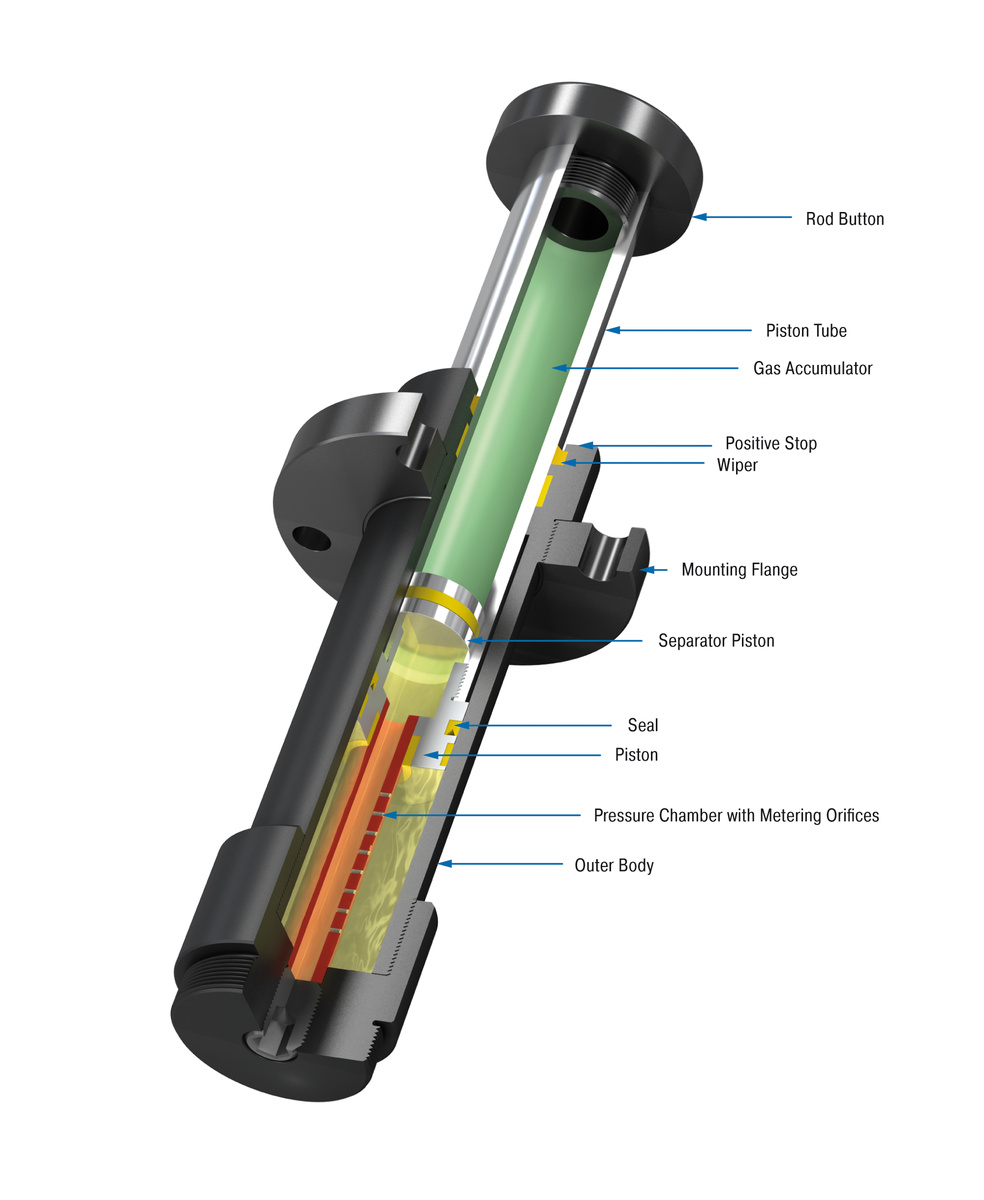

ACE Controls Inc. - Image - CB100EU
ACE Controls International Inc. is not responsible for content on external linked websites.
ACE Controls Inc. - Image - CB100EU

Technical data

Energy capacity 80,000 Nm/Cycle to 240,000 Nm/Cycle

Stroke 200 mm to 600 mm

Impact velocity range 0.5 m/s to 4.6 m/s. Other speeds on request.

Reacting Force at max. capacity rating = 467 kN max.

Operating temperature range -12 °C to +66 °C. Other temperatures on request.

Mounting in any position

Positive stop Integrated

Material Outer body, Rod end button: steel corrosion-resistant coating; Piston tube: hard chrome plated steel

Damping medium Automatic Transmission Fluid (ATF)

Filling pressure approx. 5.6 bar to 5.9 bar. Rod return by integrated nitogen accumulator.

Note

The shock absorber can be pushed through its stroke. In creep speed conditions the shock absorber provides minimal resistance and there is no braking effect.

On request

Special oils, special flanges, additional corrosion protection etc.
