TYPES	Damping torque Ncm	Damping direction
FYN-N1-L103	100	left
FYN-N1-L203	200	left
FYN-N1-L253	250	left
FYN-N1-L303	300	left

Rotary Dampers
FYN-N1-L303

Small diameter, large damping torques

Partial Rotation Angle
Damping torque 300 Ncm

The damping direction of the rotary damper FYN-N1 can be either right or left rotation. The dampers can be directly mounted in the pivot point. During each reverse movement of the unilateral decelerating versions there is a certain return damping torque that depends on the size. Differentiation of the damping direction through coloured end cap. ACE rotary dampers are maintenance-free and ready-to-install.

This product is not available for
online order.

If you are interested in ordering this
product, click the inquiry form below
and we will contact you.

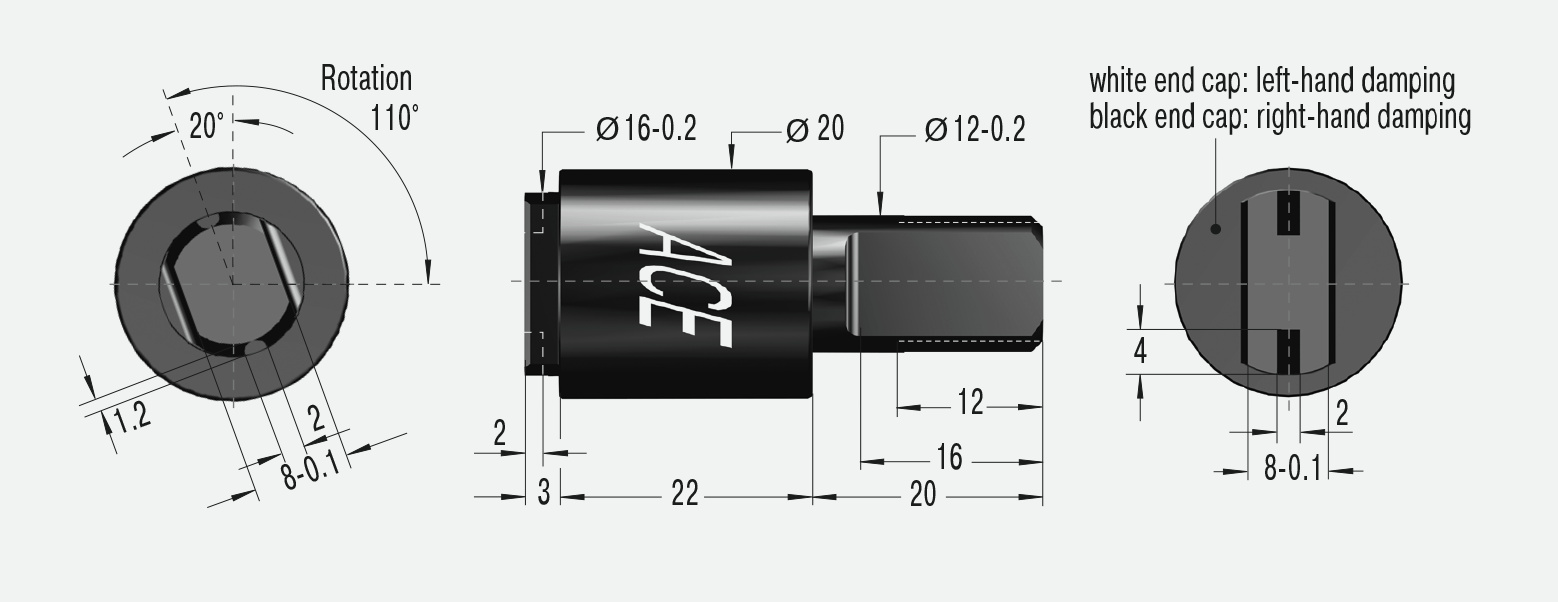

CAD Drawings

Product-Downloads

Technical Details

FYN-N1-L303

Partial Rotation Angle

Technical data

Damping torque 300 Ncm

Damping direction left

Return Damping Torque 80 Ncm

Construction size Ø 20 mm

Lifetime 50,000 cycles, even after this time, the dampers still produce over approx. 80 % of their original damping moment. The service life may be significantly higher or lower, depending on the application.

Operating temperature range -5 °C to +50 °C

Material Outer body, Shaft: plastic

Mounting in any position

Rotation angle max. 110°

Note

Damping direction: Right hand damping = damping action in clockwise direction (when looking onto the output shaft or output shaft sleeve, depending on the damper type). A play of approx. 5° can occur at the beginning of movement.

Mounting information

No axial or radial forces may be induced via the shaft.

Safety information

Do not use rotary dampers as supports. Provide an external guide or support.

On request

Special accessories available on request.
