TYPES	Damping torque Nm	Damping direction
FDT-47	2.0 +/- 0.3	bidirectional
FDT-57	4.7 +/- 0.5	bidirectional
FDT-63	6.7 +/- 0.7	bidirectional
FDT-70	8.7 +/- 0.8	bidirectional

TYPES

Damping torque Nm

Damping direction

2.0 +/- 0.3

bidirectional

FDT-57

4.7 +/- 0.5

bidirectional

FDT-63

6.7 +/- 0.7

bidirectional

FDT-70

8.7 +/- 0.8

bidirectional

Rotary Dampers
FDT-47

The flat disc brake for two-sided damping

Continuous Rotation
Damping torque 2.0 +/- 0.3 Nm

The damping direction of the flat constructive ACE rotary damper FDT with robust steel body is two-sided rotation. It can brake directly in the pivot point of the square receptacle. ACE rotary dampers are maintenance-free and ready-to-install.

This product is not available for
online order.

If you are interested in ordering this
product, click the inquiry form below
and we will contact you.

CAD Drawings

FDT-47

Continuous Rotation

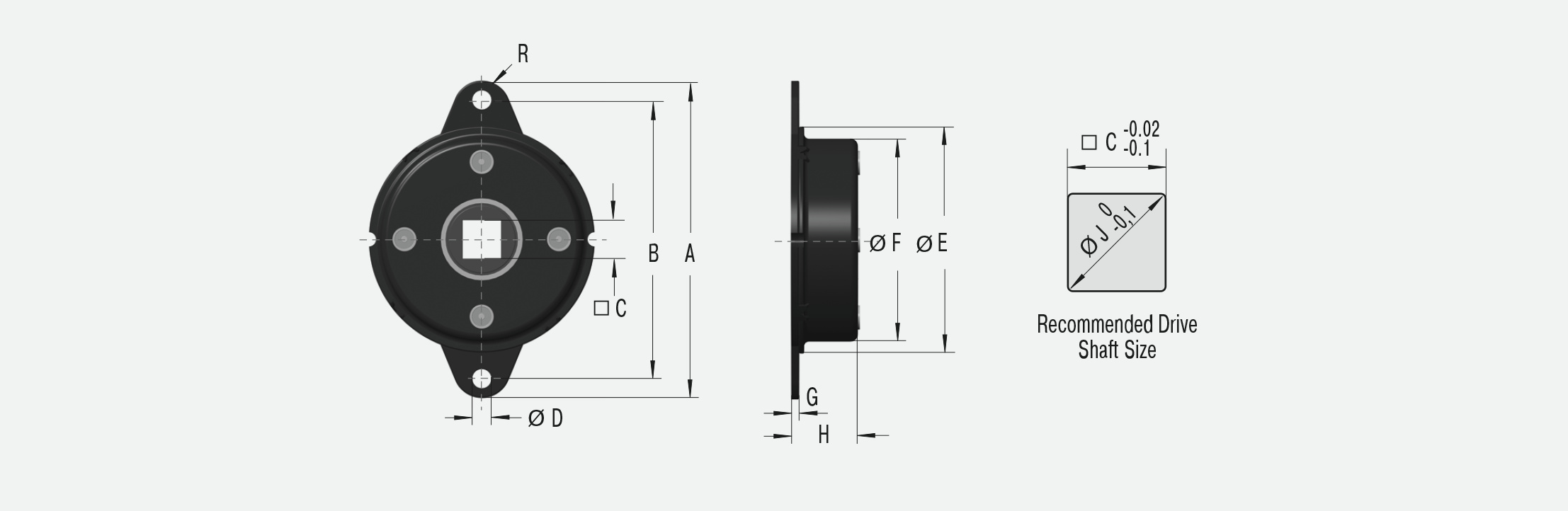

Dimensions

A	65 mm
B	56 mm
C	8 mm
D	4.5 mm
R	4.5 mm
E	47 mm
F	42.8 mm
G	1.6 mm
H	10.3 mm
J	10 mm

Technical data

Damping torque 2.0 +/- 0.3 Nm

Damping direction bidirectional

Construction size Ø 47 mm to 70 mm

Rotational speed max. 50 rpm

Lifetime 50,000 cycles (1 cycle = 360° left-hand, 360° right-hand). Even after this time, the dampers still produce over approx. 80 % of their original damping moment. The service life may be significantly higher or lower, depending on the application.

Operating temperature range -10 °C to +60 °C

Material Outer body: steel; Output shaft sleeve: nylon

Mounting in any position

Mounting information

No axial or radial forces may be induced via the shaft.

Safety information

Do not use rotary dampers as supports. Provide an external guide or support.

On request

Special accessories available on request.

FDT-47

Continuous Rotation

Application Examples

Rotary Dampers - FDT

Opening and closing mechanisms for machine protection hoods

To exclude the possibility of injury when using bread slicing machines on self-service counters, the automatic bread slicing process does not start until the flap of the modern machine is closed. To simplify the operation and to thereby increase a...

Rotary Dampers - FDT

Steering stabilisation for toboggans and sport vehicles

In this innovative tobogganing vehicle called Pistenbock-Cross rotation dampers from ACE come into action. These help to effectively damen unexpected steering turns and smooth the overall process to improve driving comfort and safety. Two FDT rota...

Application Areas

linear slides
pneumatic cylinders
handling modules
machines and plants
swivel units
electro-mechanical drives
hydraulic devices
conveyor systems
crane systems

These compact, cost-effective machine elements are ideal as end position dampers in linear axes, in toolmaking and tool machines, in hydraulic and pneumatic equipment, handling equipment and other applications.
