Hydraulic Feed Controls
VC25125EUFT

Compression force min. 70 N

Compression force max. 3,500 N

Return Force min. 10 N

Return Force max. 60 N

Return Time 2.8 s

Side Load Angle max. 1 °

Compression force 30 N to 3,500 N N

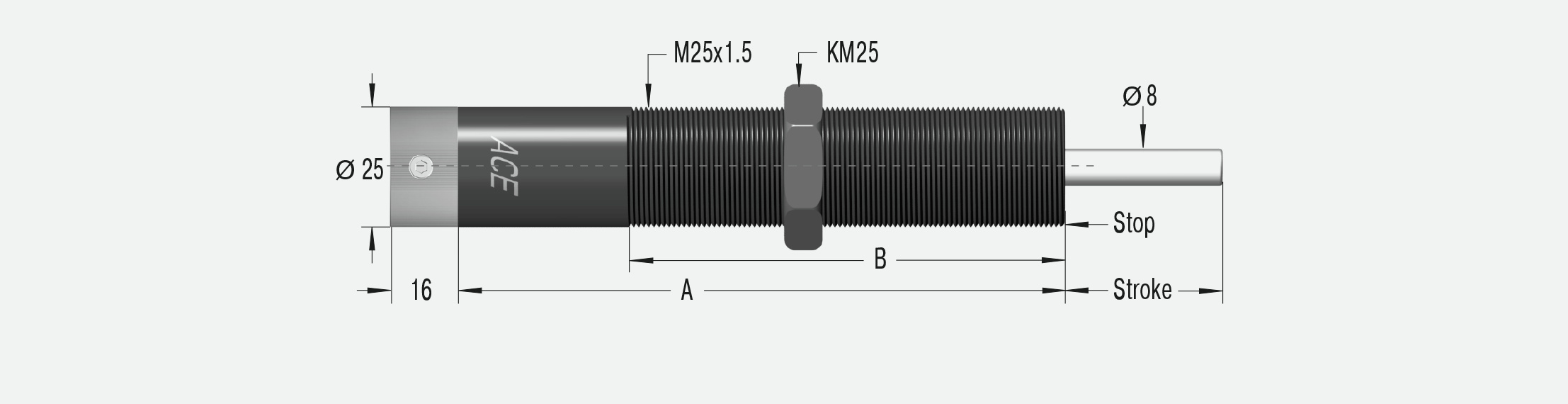

Piston rod diameter Ø 8 mm

Impact velocity range At speeds of 0.3 m/s the maximum allowed energy is approx. 1 Nm for units up to 55 mm stroke and approx. 2 Nm for units 75 mm to 125 mm stroke. Where higher energies occur use a shock absorber for the initial impact. Avoid high impact velocities.

Adjustment Infinitely adjustable

Positive stop External positive stops 1 mm to 1.5 mm before the end of stroke provided by the customer.

Damping medium oil, temperature stable

Material Outer body: black anodized aluminium; Piston rod: hard chrome plated steel; Accessories: steel with black oxide finish or nitride hardened

Mounting in any position

Operating temperature range 0 °C to 60 °C

Note

Nylon button PP600 can be fitted onto piston rod. Unit may be mounted in any position.

Safety information

Do not rotate piston rod, if excessive rotation force is applied rolling seal may rupture. External materials in the surrounding area can attack the seal components and lead to a shorter service life. Please contact ACE for appropriate solution suggestions.

On request

Special oil and other special options available on request.
