Hydraulic Feed Controls
MVC225EUM

Designed for applications with low precision requirements

Adjustable
Compression force max. 1,750 N
Stroke 19 mm

Many application options: The hydraulic feed controls in models FA, MA and MVC are similar to that of the VC model. However, these hydraulic controls have been designed for applications that require less precision.

There are also plenty of accessories for the FA, MA and MVC models. All products are ready-to-install, maintenance-free, stable in temperature and avoids stick-slip effect. Speeds from 12 mm/min. can be driven at a low thrust force using the adjustment screw on the base of the hydraulic control.

This product is not available for
online order.

If you are interested in ordering this
product, click the inquiry form below
and we will contact you.

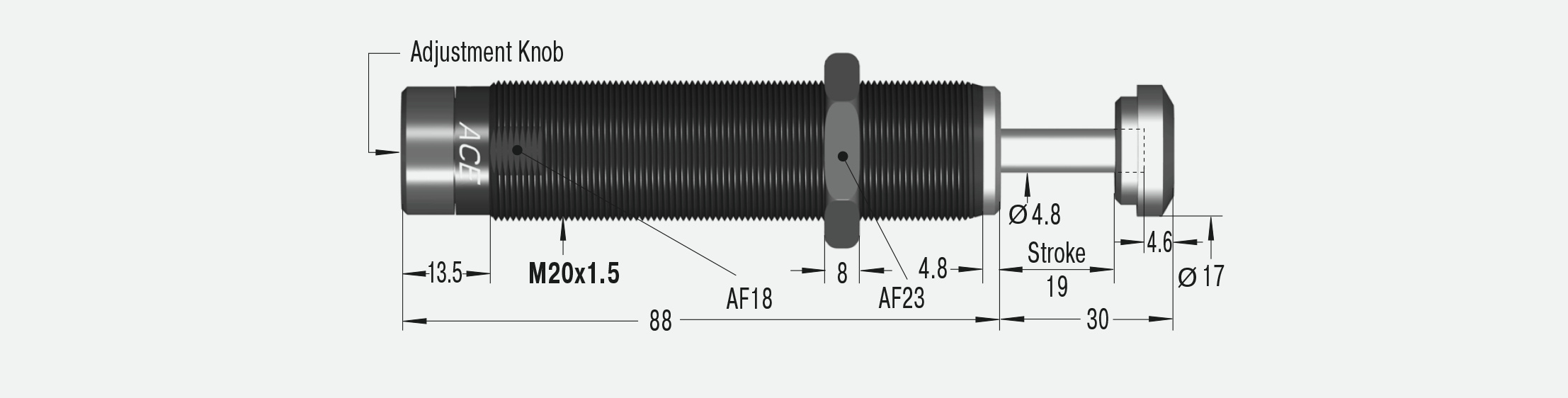

CAD Drawings

MVC225EUM

Adjustable

Dimensions

Stroke

19 mm

Technical data

Compression force min. 25 N

Compression force max. 1,750 N

Return Force min. 5.0 N

Return Force max. 10.0 N

Return Time 0.65 s

Side Load Angle max. 2 °

Compression force 25 N to 1,750 N N

Impact velocity range At speeds of 0.3 m/s the maximum allowed energy is approx. 2 Nm. Where higher energies occur use a shock absorber for the initial impact. Avoid high impact velocities.

Adjustment Hard impact at the start of stroke, adjust the ring towards 9 or PLUS. Hard impact at the end of stroke, adjust the ring towards 0 or MINUS.

Positive stop Integrated

Damping medium oil, temperature stable

Material Outer body: nitride hardened steel; Piston rod: steel with black oxide finish or nitride hardened

Mounting in any position

Operating temperature range 0 °C to 66 °C

Note

Damper is preset at delivery in a neutral position between hard and soft.

Safety information

External materials in the surrounding area can attack the seal components and lead to a shorter service life. Please contact ACE for appropriate solution suggestions.

On request

Nickel-plated, weartec finish (seawater resistant) or other special options available on request.
