TYPESStroke mmL extended mmExtension force max. N
GS-10-20-V4A2072100
GS-10-30-V4A3092100
GS-10-40-V4A40112100
GS-10-50-V4A50132100
GS-10-60-V4A60152100
GS-10-80-V4A80192100

Industrial Gas Springs – Push Type
GS-10-20-V4A

With food grade oil according to FDA approval

Valve Technology, Stainless Steel
Extension force max. 100 N
Stroke 20 mm

Protection against corrosion and superior optics for even more sophisticated requirements: Based on ACE's industrial gas push type springs GS-8 to 40 made of steel, these models combine all advantages of stainless steel: they look great and are rust free. They are filled with food-grade oil as standard, which conforms to the requirements of FDA 21 CFR 178.3570.

These ACE gas push type springs do not only look good, they also are available in various stroke lengths and possible extension forces. A comprehensive range of accessories in stainless steel guarantees easy assembly and a broad range of uses.
Industrial Gas Springs – Push Type
GS-10-20-V4A
With food grade oil according to FDA approval
Valve Technology, Stainless Steel
Extension force max. 100 N
Stroke 20 mm
ACE Controls Inc. - Image - GS-10-V4A
ACE Controls Inc. - Image - GS-10-V4A
ACE Easy Sizing Don't know Size or Type? Size it!
This product is not available for
online order.
If you are interested in ordering this
product, click the inquiry form below
and we will contact you.

CAD Drawings

Product-Downloads

  • ACE CAD
  • Traceparts
  • Cadenas Part Solutions
Operating & Mounting Instructions

Family GS-8-V4A to GS-40-VA

Operating & Mounting Instructions 3 MB 04/06/2024
  • Technical Details
  • Use Cases
  • Accessories
GS-10-20-V4A
Valve Technology, Stainless Steel

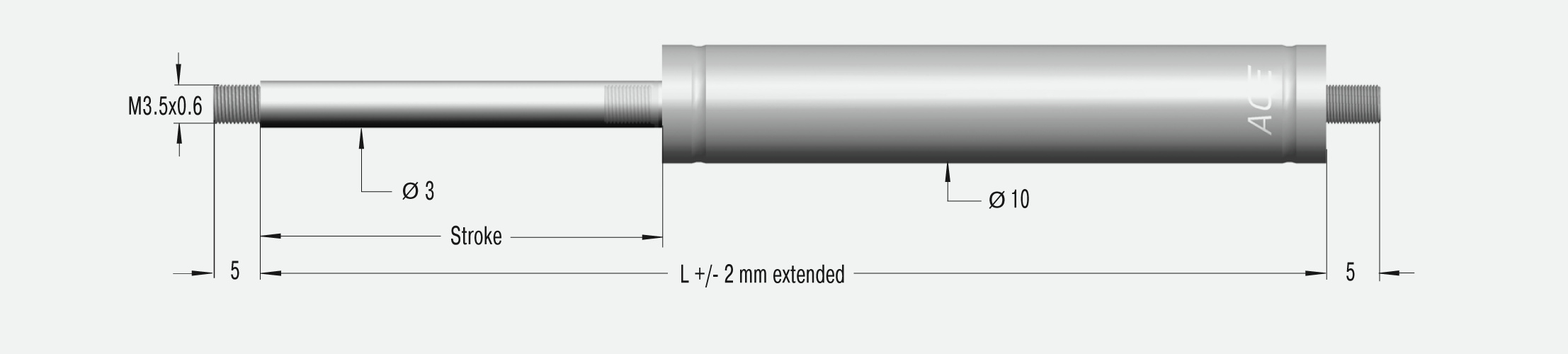

Dimensions

GS-10-20-V4A
Stroke20 mm
L extended72 mm

Technical data

Extension force max. 100 N

Piston rod diameter Ø 3 mm

Progression Approx. 13 % to 16 %

Lifetime Approx. 10.000 m

Operating temperature range -20 °C to +80 °C

Material Outer body, Piston rod, End fittings: stainless steel (1.4404/1.4571, AISI 316L/316Ti)

Operating fluid nitrogen gas and HLP oil according to DIN 51524, part 2

Mounting We recommend mounting with piston rod downwards to take advantage of the built-in end position damping.

End position damping length approx. 5 mm (depending on the stroke)

Positive stop External positive stop at the end of stroke provided by the customer.

Note

Special oil according to FDA 21 CFR 178.3570 of the food industry

End fittings

They are interchangeable and if necessary must be positively secured by the customer to prevent unscrewing.

Safety information

Gas pressure springs should not be installed under pre-tension.

On request

Special oils and other special options. Alternative accessories. Different end position damping and extension speed. Other gas springs material 1.4404/1.4571, AISI 316L/316Ti (V4A) available on request.

Sales data

Weight
0.017 kg

F and R Weight
0.0 kg

S Weight
0.0 kg

Customs tariff number
83024900

Country of origin
DE

GS-10-20-V4A
Valve Technology, Stainless Steel

Application Examples

Tilt-in-space functions for hygiene and toilet chairs
Industrial Gas Springs – Push Type - GS-8-V4A to GS-40-VA
Tilt-in-space functions for hygiene and toilet chairs
A special hygiene and toilet chair, designed for children and young people with disabilities, must be firmly lockable in the sit and tilt positions. The practical aid thereby provided for relatives and carers can be attributed to two lockable ACE ...
Tilt-in-space functions for hygiene and toilet chairs

Application Areas

  • hoods
  • shutters
  • machine housing
  • conveyor systems
  • control boxes
  • furniture industry
  • shipbuilding
  • food industry
  • pharmaceutical industry
  • folding elements
ACE industrial gas pressure springs made of stainless steel are used in the automotive sector, in industrial applications, mechanical engineering and medical cleanroom technology as well as in the food, electronics and shipbuilding industries.
GS-10-20-V4A
Valve Technology, Stainless Steel

End Fitting

Angle Ball Joint
C3.5-V4A
C3.5-V4A
Clevis Fork
D3.5-V4A
D3.5-V4A
Adjuster Knob
DE-GAS-3.5
DE-GAS-3.5
Ball Socket
G3.5-V4A
G3.5-V4A
Eye
A3.5-V4A
A3.5-V4A
Eye
A3,5-V4A
A3,5-V4A
Angle Ball Joint
C3,5-V4A
C3,5-V4A
Clevis Fork
D3,5-V4A
D3,5-V4A
Ball Socket
G3,5-V4A
G3,5-V4A
Adjuster Knob
DE-GAS-3,5
DE-GAS-3,5

Mounting Bracket

Angle Bracket
NA3.5-V4A
NA3.5-V4A
Angle Bracket
NA3,5-V4A
NA3,5-V4A
Angle Bracket
NG3.5-V4A
NG3.5-V4A
Angle Bracket
NG3,5-V4A
NG3,5-V4A
Side Bracket
OA3.5-V4A
OA3.5-V4A
Side Bracket
OA3,5-V4A
OA3,5-V4A
Side Bracket
OG3.5-V4A
OG3.5-V4A
Side Bracket
OG3,5-V4A
OG3,5-V4A
  • Products
  • Automation Control
  • Motion Control
  • Vibration Control
  • Safety Products
  • Applications
  • Automation Control
  • Motion Control
  • Vibration Control
  • Safety Products
  • Sizing
  • Automation Control
  • Motion Control
  • Vibration Control
  • Safety Products
  • Sales
  • Where to Buy
  • Price Request
  • Procurement
  • Service, Support & Info
  • Service & Downloads
  • CAD-Drawings
  • Catalogues and more
  • Mounting Instructions
  • Mobile Apps
  • Knowledge
  • ACE Academy
  • Certifications
  • News & Press
  • Press Releases
  • Trade Shows
  • Jobs & Career

ACE Controls International Inc. © 2024

  • Cookie Settings
  • Terms and Conditions
  • Privacy Policy
  • Imprint
ACE Controls International Inc. is not responsible for content on external linked websites.
Successfully logged in
