Safety Shock Absorbers
EB100EU

Low return force with spring assembly

Crane Installations, Optimized Characteristic
Energy capacity 80,000 Nm/Cycle to 240,000 Nm/Cycle
Stroke 200 mm to 600 mm

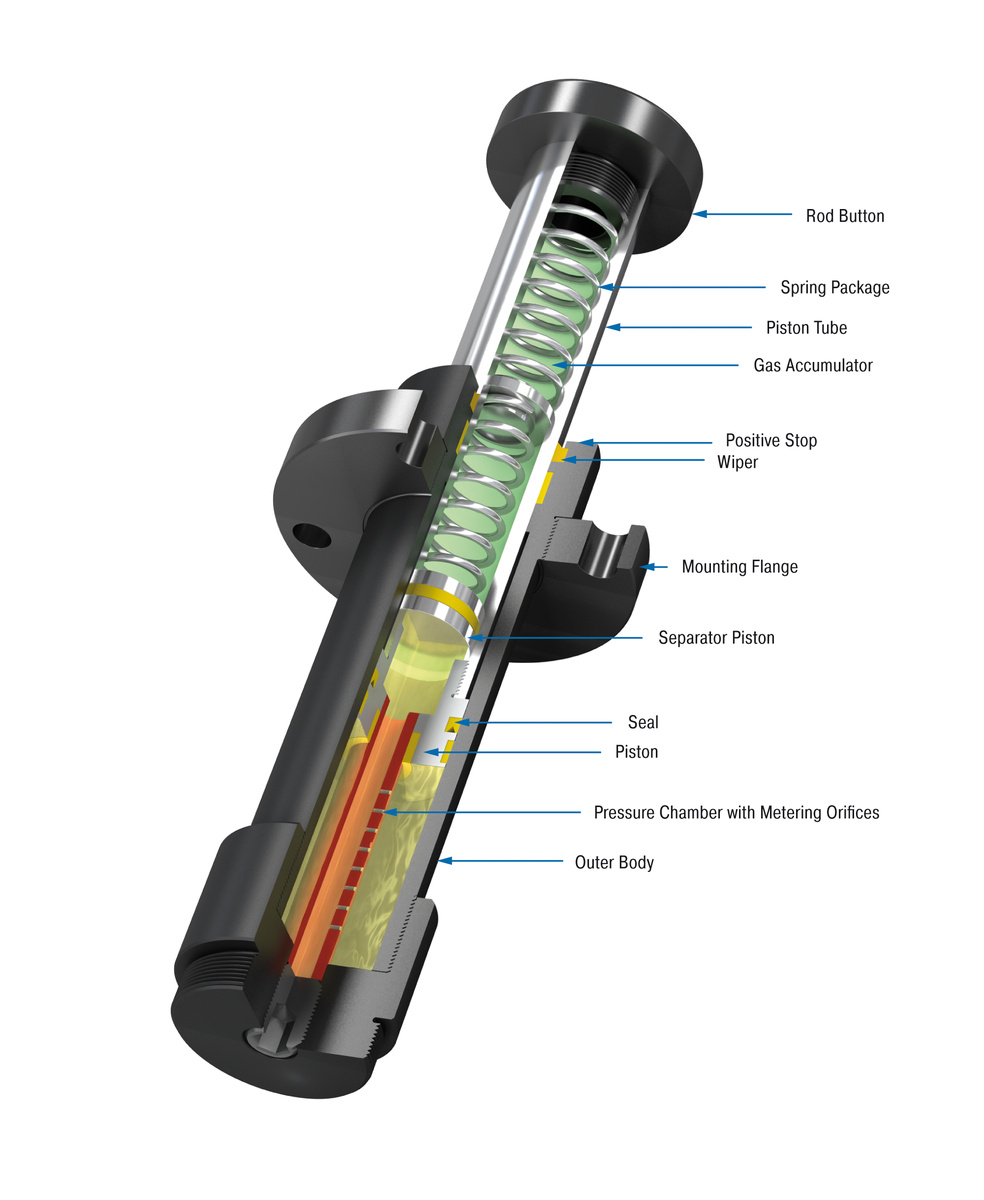

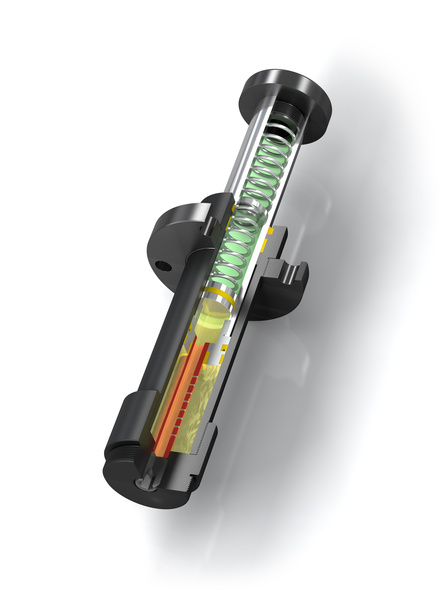

Reduced return forces: The ACE safety shock absorbers from the EB-Family offer internal system seals, large sized piston rod bearings and the maximum energy absorption for emergency stop applications. However, an integrated spring package in the robust shock absorber body makes sure that the return forces are reduced much to a fraction of those in the CB-Family.

The characteristic curve or damping characteristics of the maintenance-free and ready-to-install EB models is individually adjusted specific to the customer and to the respective application, just like all ACE safety shock absorbers.

These safety shock absorbers reliably perform their services in crane systems and in numerous heavy duty applications, even if the power fails, because these hydraulic machine elements are autonomous braking systems.

Technical data

Energy capacity 80,000 Nm/Cycle to 240,000 Nm/Cycle

Stroke 200 mm to 600 mm

Impact velocity range 0.5 m/s to 4.6 m/s. Other speeds on request.

Reacting Force at max. capacity rating = 467 kN max.

Operating temperature range -12 °C to +66 °C. Other temperatures on request.

Mounting in any position

Positive stop Integrated

Material Outer body, Rod end button: steel corrosion-resistant coating; Piston tube: hard chrome plated steel

Damping medium Automatic Transmission Fluid (ATF)

Filling pressure approx. 0.55 bar to 1.1 bar. Rod return by integrated nitogen accumulator combined with additional return spring.

Note

The shock absorber can be pushed through its stroke. In creep speed conditions the shock absorber provides minimal resistance and there is no braking effect.

On request

Special oils, special flanges, additional corrosion protection etc.

×
