Motion Control
TYPESStroke mmL extended mmCompression force max. N
HBD-85-10010031350,000
HBD-85-15015041330,000
HBD-85-20020051320,000
HBD-85-30030071310,000
HBD-85-4004009136,500
HBD-85-5005001,1134,000
HBD-85-6006001,3133,000
HBD-85-7007001,5132,000

HBD-85

Regulation at the highest level

Adjustable, Without Free Travel
Compression and extension force 150 N to 50,000 N
Stroke 150 mm to 700 mm

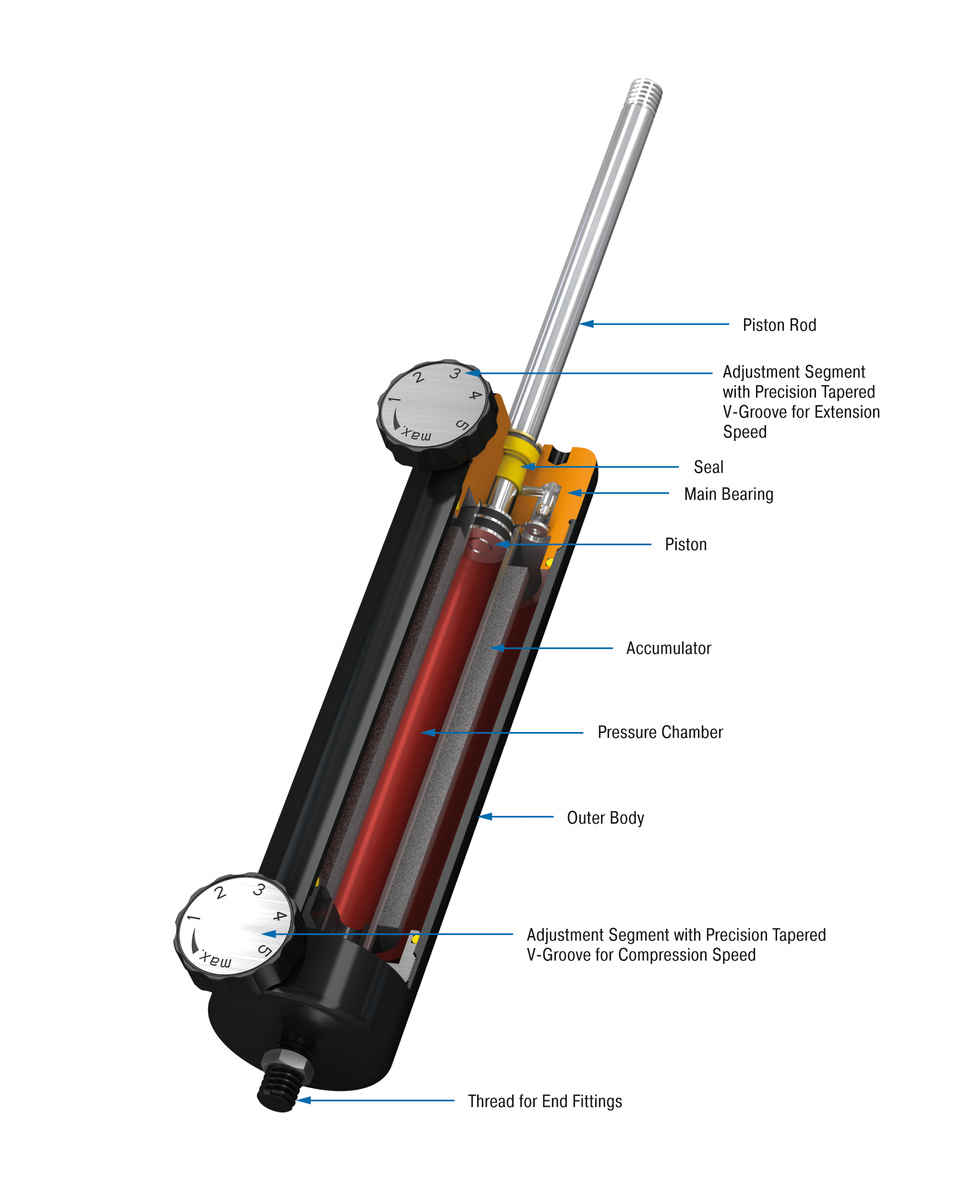

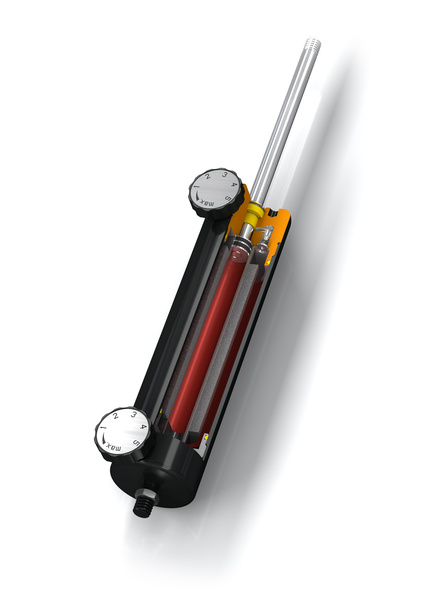

Motion control in both directions: The HBD model of hydraulic dampers can be adjusted independently in both the push and pull direction. These maintenance-free, ready-to-install and closed systems leave no prayers unanswered as far as the setting of retraction and extension speeds are concerned. In addition each damper works without any free travel therefore the flow of oil can be regulated exactly via the two precision metering orifices.
Adjustment can be made once installed and even when moving through stroke. The coated body and hard-chromed piston rods stand for quality and long service life. The variety of mounting accessories makes assembly easy and the high-end hydraulic dampers universally usable.

HBD hydraulic dampers are used in the automotive, in industry, mechanical engineering and medical technology.
Learn More ...

Technical data

Compression and extension force 150 N to 50,000 N

Stroke 150 mm to 700 mm

Outer body diameter Ø 85 mm

Piston rod diameter Ø 20 mm

Lifetime Approx. 10,000 m

Operating temperature range 0 °C to 65 °C

Adjustment Steplessly adjustable

Positive stop External positive stops 2 mm to 3 mm before the end of stroke provided by the customer.

Damping medium Hydraulic oil

Material Outer body: Coated steel; Piston rod: Hard chrome plated steel; End fittings: Zinc plated steel

Mounting In any position

Application field Sports equipment, Rehabilitation technology, Conveyor technology

Note

Increased break-away force if unit has not moved for some time. Thread adaptor for piston rod from M16 to M24 included.

End fittings

They are interchangeable and must be positively secured by the customer to prevent unscrewing.

On request

Special oils and other special options. Alternative accessories available on request.
