TYPESEnergy capacity Nm/cycleStroke mmStroke A mmStroke B mm
TD-28-50-5075-5050
TD-28-70-7070-7070
TD-28-100-10080-100100
TD-28-120-120165-120120

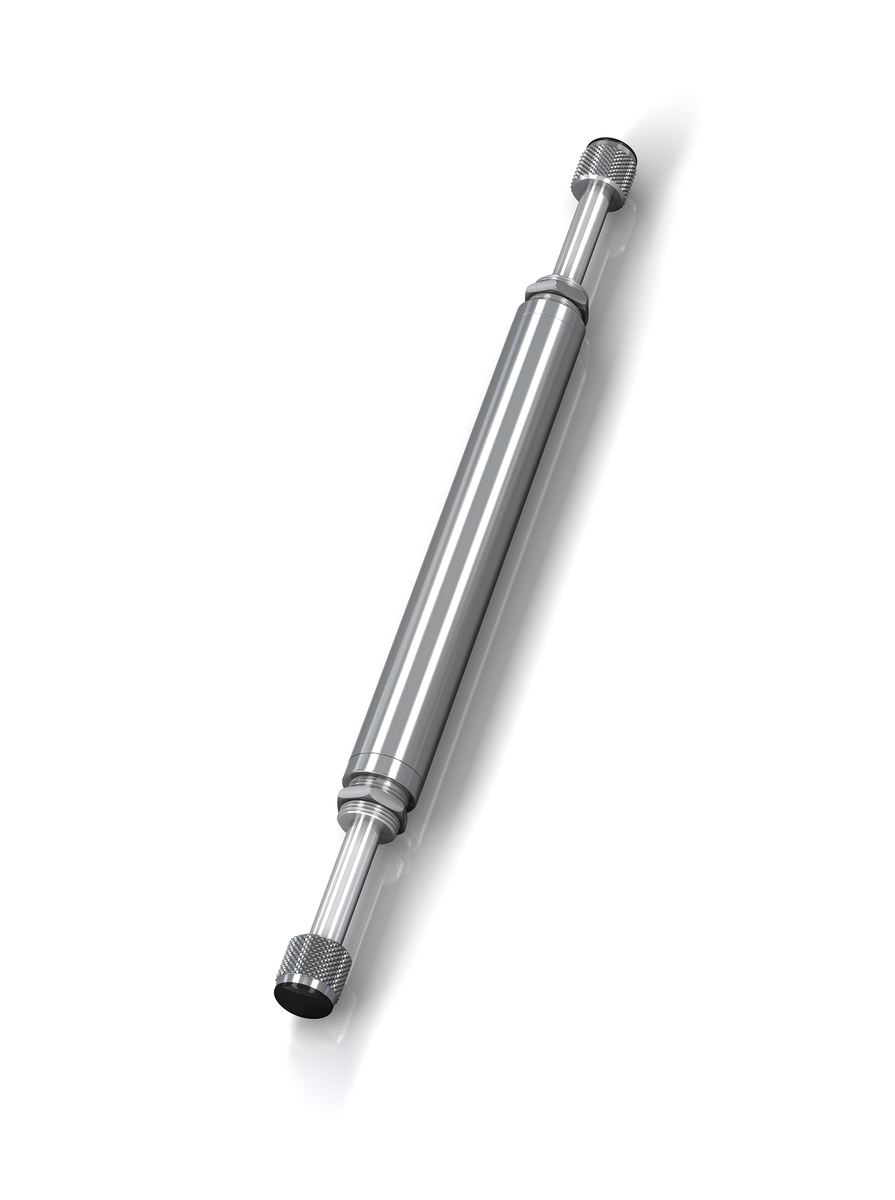

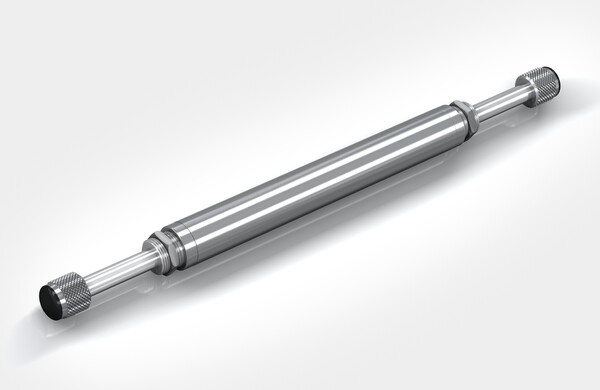

TD-28

The safe way to close doors

Adjustable
Energy capacity 75 Nm/Cycle to 165 Nm/Cycle
Stroke 50 mm to 120 mm

Technical data

Energy capacity 75 Nm/Cycle to 165 Nm/Cycle

Stroke 50 mm to 120 mm

Outer body diameter Ø 28 mm

Piston rod diameter Ø 8 mm

Free travel TDE: marginal

Operating temperature range -20 °C to 80 °C

Adjustment Pull the piston rod fully out and turn the knurled rod end button. The internal toothed adjustment allows the damping to be separately adjusted for each side. As a result of the adjustment mechanism the overall length L can be increased by up to 4 mm.

Material Outer body: Zinc plated steel; Piston rod: Hard chrome plated steel

Impact velocity range 0.1 m/s to 2 m/s

Strokes per minute max. 10

Application field Lift doors, Automatic doors, Doors

Note

ACE door dampers are single ended or double ended adjustable hydraulic shock absorbers.

On request

Special oils, other special options and special accessories are available on request.
